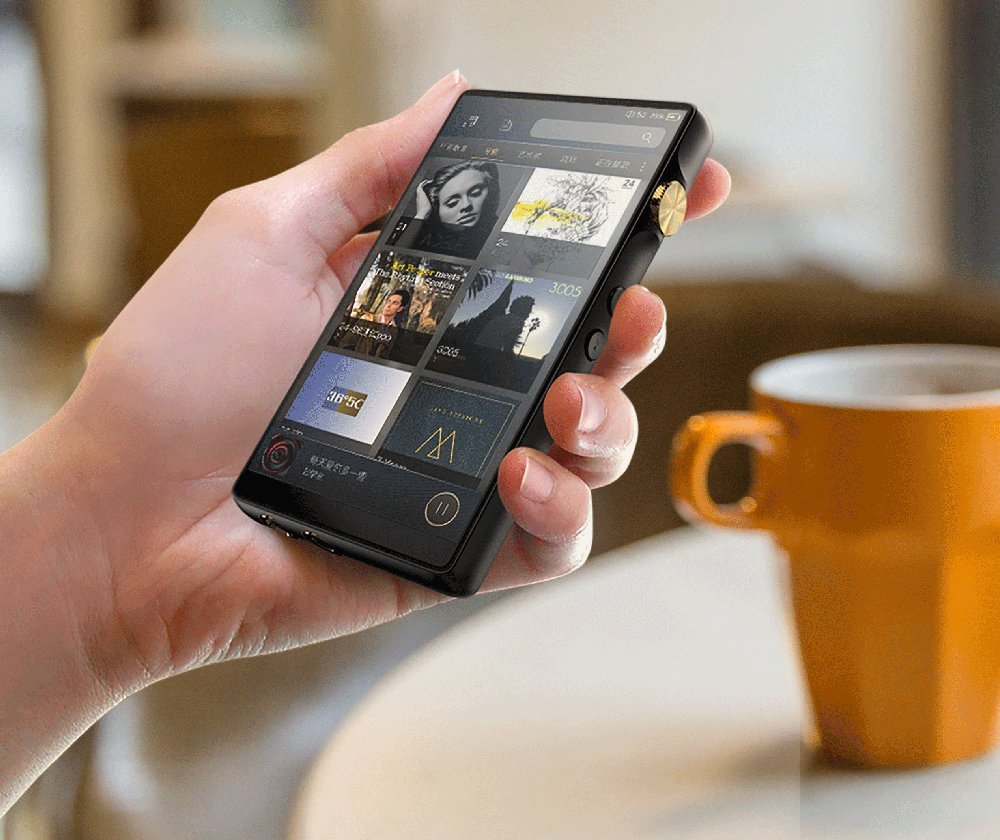

iBasso DX160 Hi-Res Digital Audio Player

The iBasso DX160 is the company’s new mid-range digital audio player featuring a dual CS43198 DAC implementation, 8-core CPU, Android Oreo (8.1), and a 5-inch Sharp 1080 x 9210 IPS full screen with on cell capacitive touch panel.

*Please note only Black and Blue colour option will be available at launch*

DX160 come with 5G WiFi and is Bluetooth 5.0 compatible, that provides lower power consumption and a more stable connection, and hi-end Dual Cirrus CS43198 DAC chips capable of DSD over PCM (DSD DoP) up to DSD256 and PCM 32/384kHz. Audio Formats Supported are: MQA, APE, FLAC, WAV, WMA, AAC, ALAC, AIFF, OGG, MP3, DFF, DSF and DXD.

The DX160 have an CNC Aluminium Frame design with curved glass rear panel that is relatively compact measuring 113 x 69 x 15mm and weighing 178 grams. DX160 comes with 32GB of Internal Memory and support SDXC and SDHC Micro SD cards. The player is equipped with a 3200mAh 3.8V Li-Polymer Battery that supports quick charge. Average playtime is 13 hours.

Specifications:

4.4mm Balanced Output: Output Voltage: 6.4Vrms | FR:10Hz~40kHz +/-0.15dB | S/N: 130dB | THD+N: 0.00022% (no Load, 3Vrms),0.00022% (32Ω Load, 3Vrms) | Crosstalk: -125dB

3.5mm Single Ended Phone Out: Output Voltage: 3.2Vrms | FR:10Hz~40kHz +/-0.15dB | S/N: 125dB | THD+N: 0.0004% (no Load, 2Vrms),0.0007% (32Ω Load, 2Vrms) | Crosstalk: -115dB

Line Out: Output Voltage: 3.2Vrms | FR: 10Hz~40kHz +/- 0.15dB | S/N: 125dB | THD+N: 0.00035% (no Load, 2Vrms) | Crosstalk: -113dB

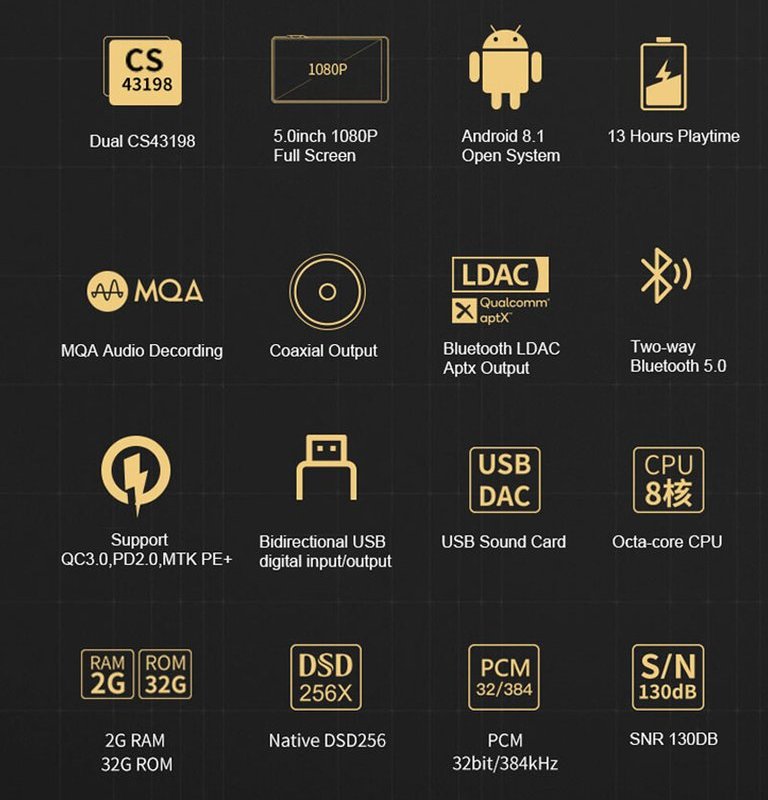

Features

• Dual Cirrus CS43198 DAC Chips and 8-core CPU
• 5.0" IPS Full Screen with On Cell Capacitive Touch Panel (1080*1920)
• CNC Aluminium Frame with Curved Glass Rear Panel
• Bit for Bit Playback with Support up to 32bit/384kHz
• Support of Native DSD up to 256x
• Support of QC3.0, PD2.0, & MTK PE Plus Quick Charge
• USB-DAC Mode
• 4.4mm Balanced Output, 3.5mm Single Ended Output, Line Out and Coaxial Out
• 5G WiFi and Bluetooth available
• 2GB LPDDR3
• 32GB of Internal Memory
• Support SDXC and SDHC Micro SD Cards
• Audio Formats Supported: MQA, APE, FLAC, WAV, WMA, AAC, ALAC, AIFF, OGG, MP3, DFF, DSF and DXD
• Support for M3U Playlists
• 3200mAh 3.8V Li-Polymer Battery
• Average 13 Hours Play Time

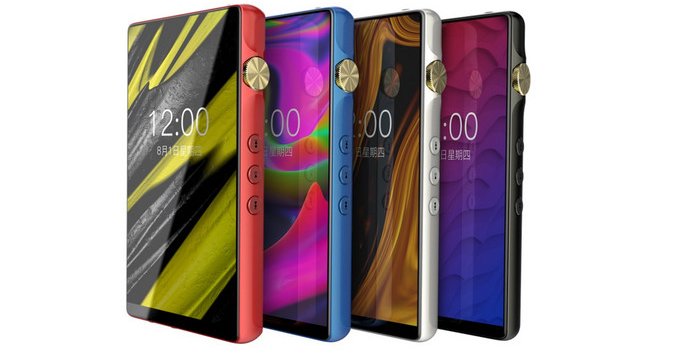

• Multiple colour option will be available
