- Dimensions: 43.8 x 45 x 13.8mm

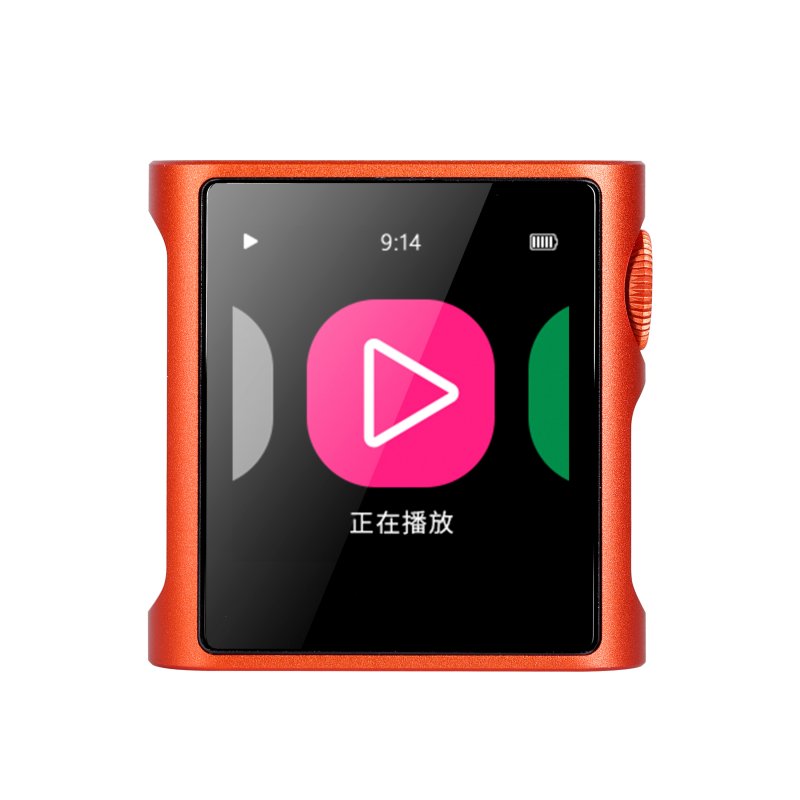

- Screen: 1.54-inch 240*240 Touch Screen
- Weight: 35.8g
- Audio: Two Cirrus Logic CS43131 DACs

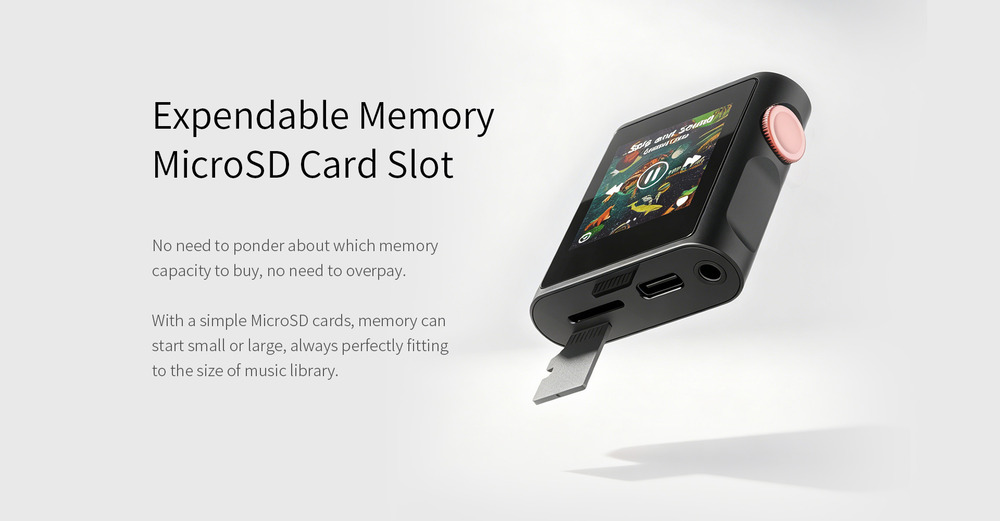

- Memory: MicroSD Card slot, up to 2TB
- Battery Life: Up to 9.5h
- Battery Capacity: 650mAh

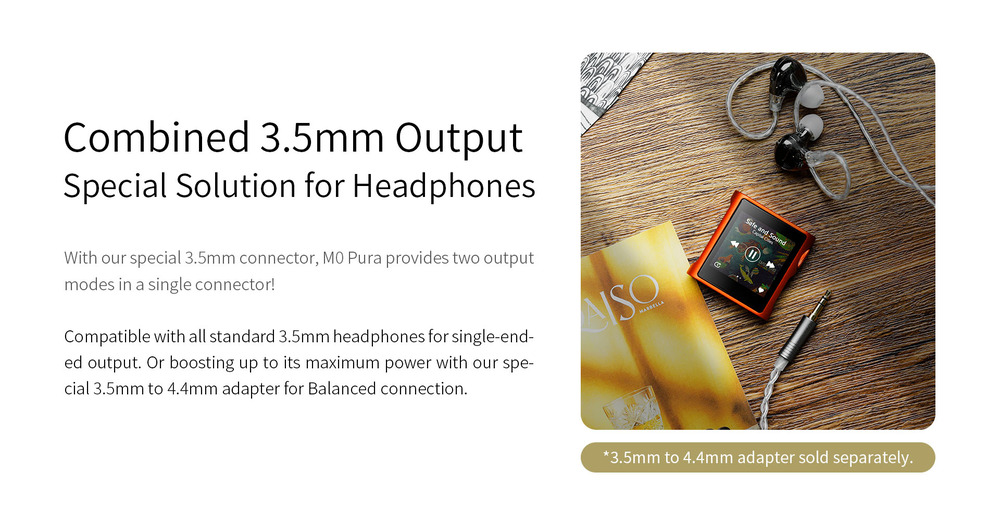

- Output: Standard 3.5mm, with option for balanced output with 4.4mm adapter
- Bluetooth: Version 5.0
- Bluetooth Codec Support
- As Transmitter: LDAC / aptX / AAC / SBC
- As Receiver: LDAC / AAC / SBC
- Hi-Res Support: PCM 32bit / 384kHz & DSD128
- USB DAC Support: PCM 32bit / 192kHz & DSD128
- Audio formats: DSD(".iso",". ds",". dff") / DXD / APE / FLAC / ALAC / WAV / AIFF / AIF / DTS / MP3 / WMA / AAC / OGG / MP2 / M4A / AC3 / CUE / M3U
Single-Ended Output:
- Output Power: 1.8V @ 32 Ohm (100mW)
- Frequency Response: 20 Hz - 40 KHz (-0.5 dB)
- THD+N: 0.0004% (A-Weighted @ 720mV)
- Channel separation: 73 dB @ 32 Ohm
- Dynamic Range: 121 dB @ 32 ohm (A-Weighted)
- Signal-To-Noise: 121 dB @ 32 ohm (A-Weighted)
- Output Impedance: 0.4 Ohm
Balanced Output:
- Output Power: 2.8V @ 32 Ohm (250mW)
- Frequency Response: 20 Hz - 40 KHz (-0.5 dB)
- THD+N: 0.0007% (A-Weighted @ 1V)
- Channel separation: 99 dB @ 32 Ohm
- Dynamic Range: 128 dB @ 32 ohm (A-Weighted)
- Signal-To-Noise: 128 dB @ 32 ohm (A-Weighted)
- Output Impedance: 0.8 Ohm
|
