The Ultimate Evolution of R2R Decoding
The DX270 is not a typical R2R player, but a deep reconstruction of R2R decoding by iBasso, in a way to implement R2R. It adopts a hybrid architecture of 20bit R2R + 4bit String DAC, combined with an 8-channel, fully differential discrete R2R, FPGA-Master 3.0, within-house developed algorithms and hardware resistor compensation network. This results in 130dB dynamic range and THD+N better than -97dB, which thoroughly overcomes common zero-crossing distortion issues in R2R devices, delivering nearly perfect linearity.

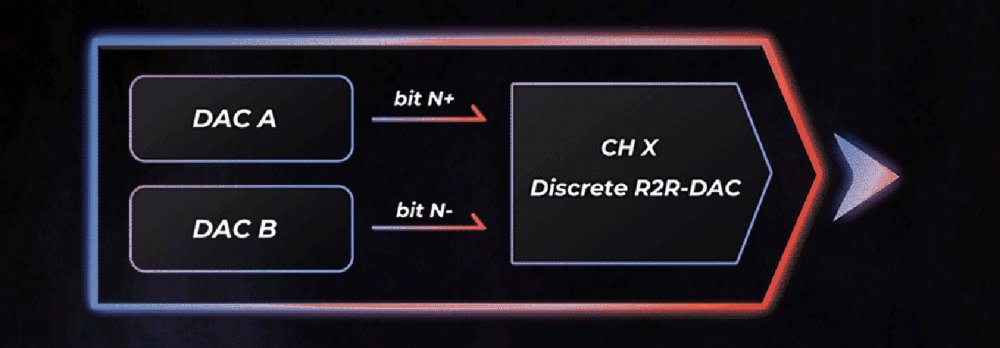

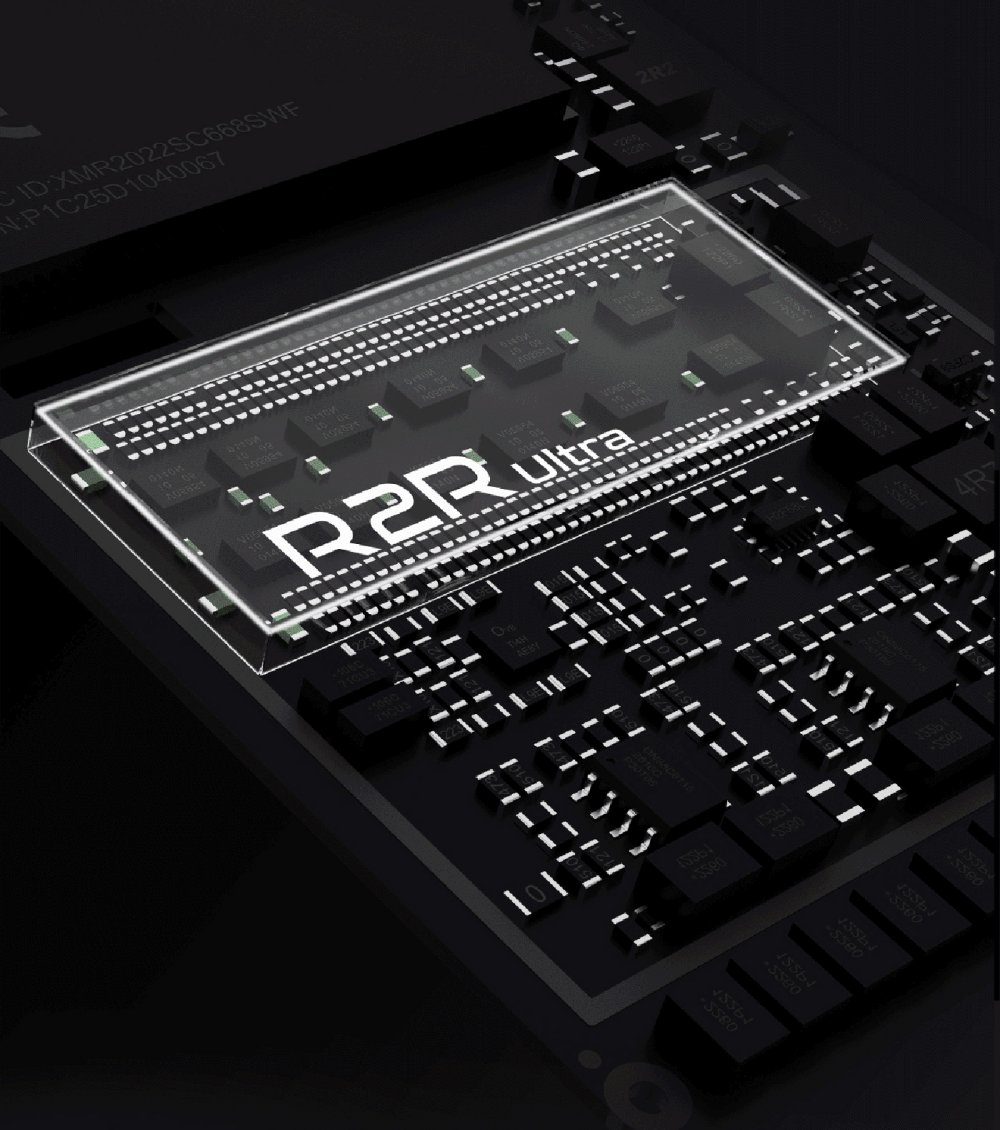

8-Channel, Fully Differential R2R

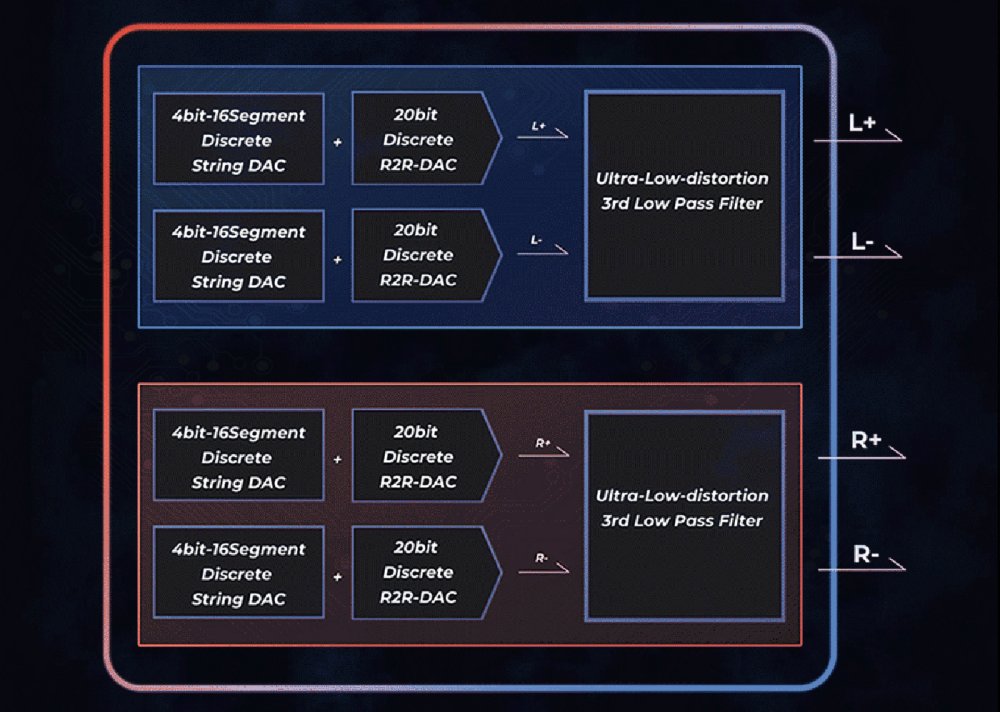

The DX270 features a fully balanced 8-channel R2R architecture, using dual R2R DACs per channel to eliminate zero-crossing distortion and maintain smooth, linear signal transitions. This differential design delivers exceptional stability even at low levels and achieves an industry-leading 130dB dynamic range.
A Leading Technology For Superior Sound Quality
The DX270 uses a hybrid 20-bit R2R plus 4-bit String DAC architecture, with a String DAC handling high-bit processing for wide dynamic range, low distortion, and minimal spurious noise. By employing 344 high-precision resistors, nearly double that of standard R2R designs, iBasso achieves a more delicate, natural, and pure sound.
FPGA-Master 3.0

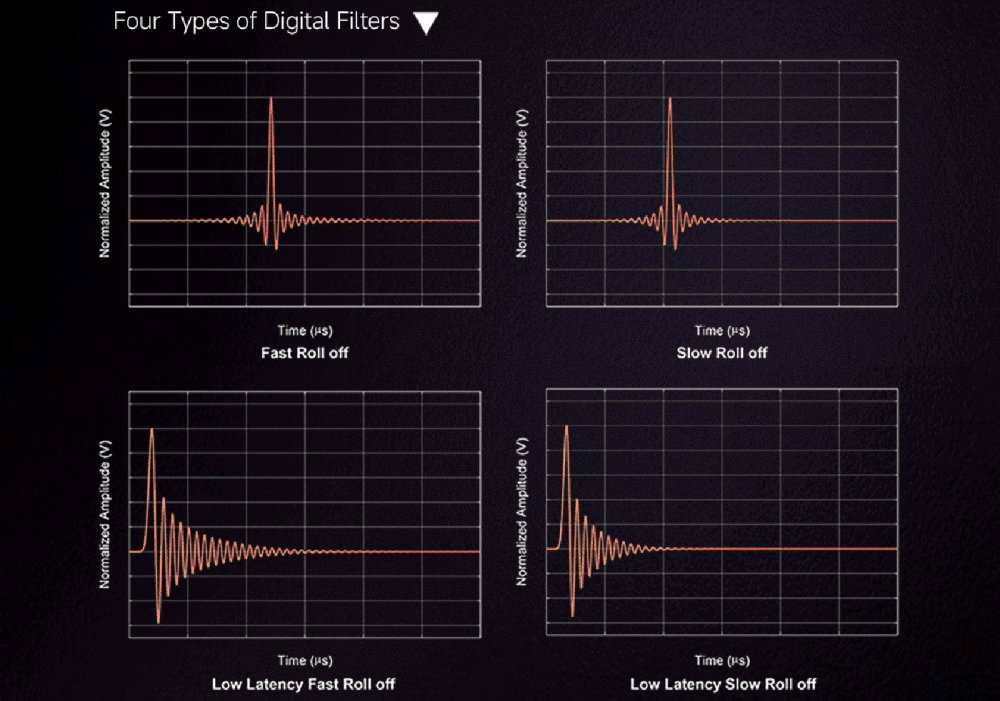

The DX270 is powered by FPGA-Master 3.0, featuring 7.5× more logic than the previous generation and dual femtosecond Accusilicon clocks for precise, low-noise control. Acting as both audio controller and real-time hardware calibration master, it compensates for component errors to optimise THD+N and dynamic range, while also supporting NOS mode and four digital filter options for tailored listening.
Hardware Resistor Compensation Network
Combined with FPGA algorithms and a hardware resistor compensation network, decoding accuracy is significantly improved, the dynamic range is expanded, and there is reduced distortion. This “software + hardware” deep synergy allows the R2R Ultra DAC to break through traditional performance ceilings. The accuracy of the equivalent resistance reaches 1.4 parts in 100,000.
Solving Zero-Crossing Distortion
Zero-crossing distortion at near-zero signal levels causes loss of detail, abnormal noise, or muddiness in low frequencies. This is a common problem in traditional R2R DACs. The DX270 utilises a fully differential architecture and precise calibration to achieve an ultra-low -120dB zero-crossing distortion level, ensuring even subtle instrument harmonics and vocal nuances are clearly reproduced.
Outstanding Linearity
The complex waveforms of music are composed of many frequency components. When the DAC’s output curve isn’t perfectly linear, extra harmonic distortion, intermodulation, and waveform distortion occur. The DX270, with ultra-high resistor matching, reliable switch precision, and optimised circuit architecture, exceeds mainstream R2R linearity. The output curve closely matches the ideal curve, free of extra harmonics or distortion, delivering a “night-black” background while delivering a natural and realistic musical presentation.

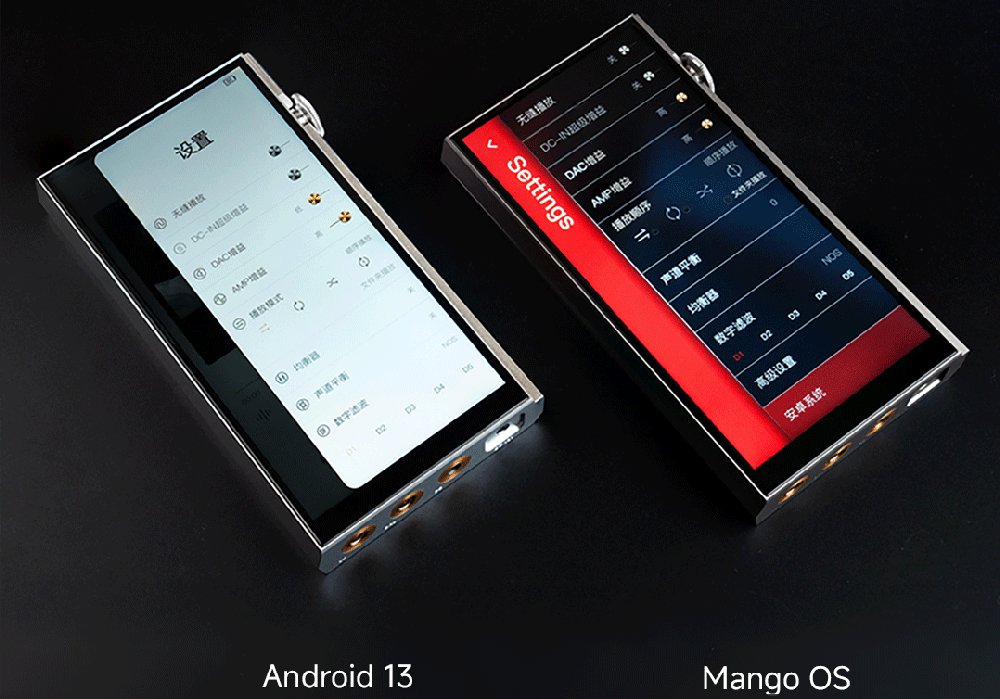

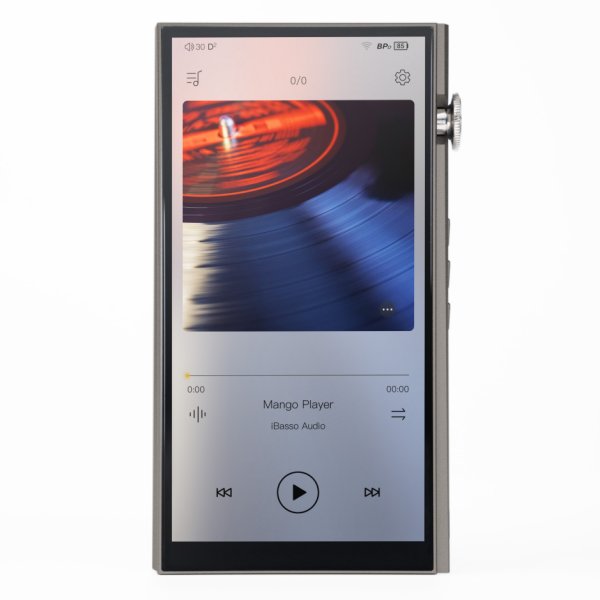

Non-SRC Android 13 + Mango OS
The DX270 utilises Android 13 OS with a refined UI that supports installation of various streaming APPs. It bypasses SRC at the system level, allowing apps like Mango Player to work at their best. Additionally, it features Mango OS, a Linux-based music system with many advanced algorithms, which are dedicated for audio playback. With lower SoC load, no WiFi interference, no Bluetooth interference, and lower EMI, the results are a purer sound.
Support 12V DC External Power Input - Powerful and Dynamic Performance
Connecting to a 12V Dc power supply boosts the amplification section’s power supply from ± 8V to ± 12V, enabling “Super Gain Mode” with output power up to 1575mW + 1575mW @ 32Ohm. This abundant power can handle complex music genres and various headphone types with ease.
Non-SRC Android 13& Linux-Based Mango OS
The DX270 utilises Android 13 OS with a refined UI that supports installation of various streaming APPs. It bypasses SRC at the system level, allowing apps like Mango Player to work at their best. Additionally, it features Mango OS, a Linux-based music system with many advanced algorithms, which are dedicated for audio playback. With lower SoC load, no WiFi interference, no Bluetooth interference, and lower EMI, the results are a purer sound.
4.4mm PO + 4.4mm LO + 3.5mm PO, Low-Latency USB-DAC
Featuring both 3.5mm and 4.4mm output interfaces, it effortlessly handles both balanced and single-ended headphones and IEMs.
The 4.4mm balanced line-out offers convenient external amplification.
The 3.5mm coaxial output supports high-quality digital output up to 384kHz.

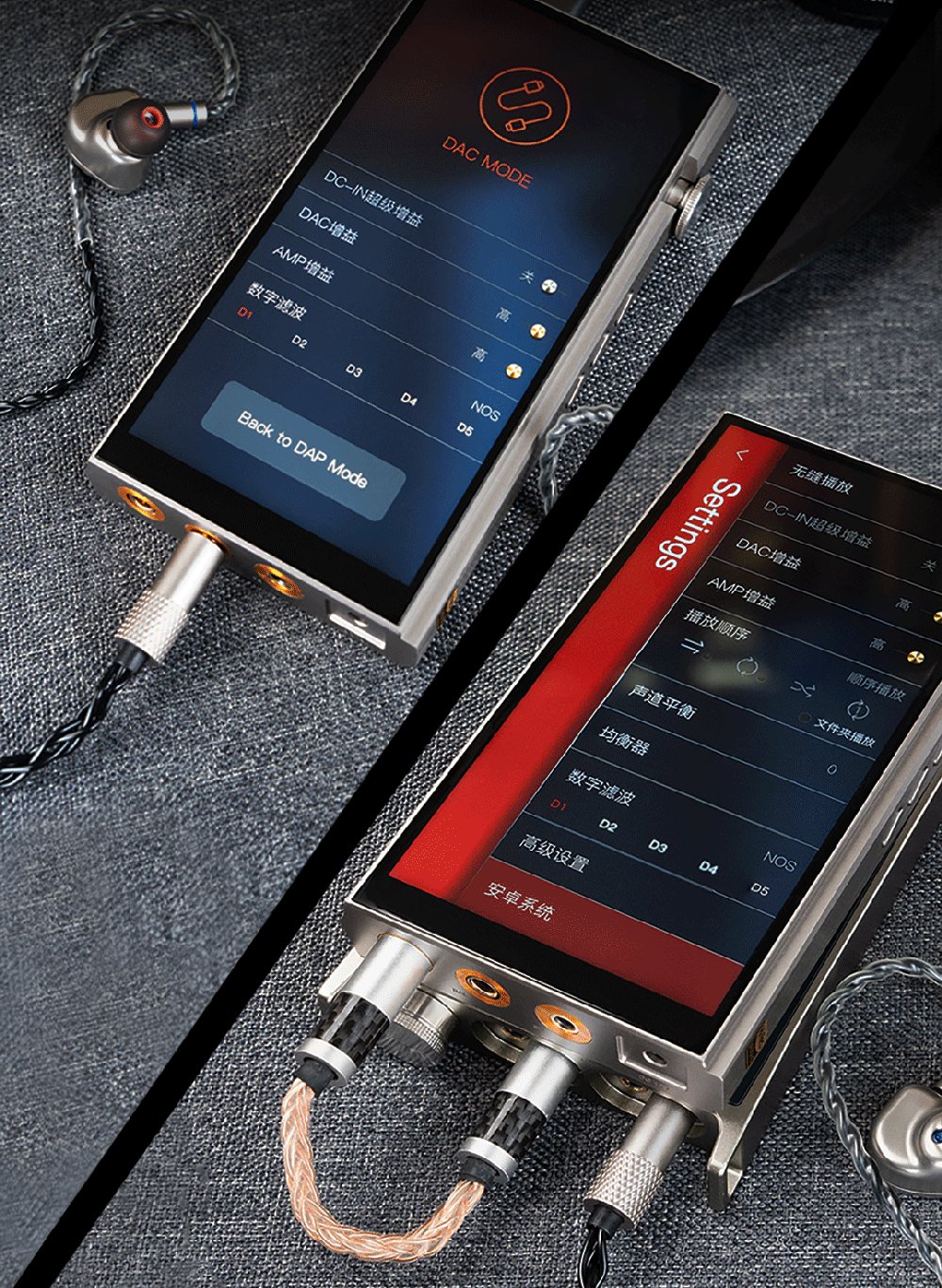

Supporting USB-DAC mode, the DX270 can turn into a high-end R2R USB-DAC for PC or smartphones.
