Cayin N7+ Digital Audio Player

The Cayin N7+ is a high-end Android-based digital audio player designed for listeners who want desktop-grade audio architecture in a portable format.

At the heart of the N7+ is Cayin’s fully balanced discrete 1-bit resistor network DSD DAC, designed around a pure 1-bit DSD audio architecture. This is supported by Cayin’s FPGA-based audio bridge, which handles re-clocking, de-jittering and re-shaping, while also supporting PCM-to-DSD512 conversion.

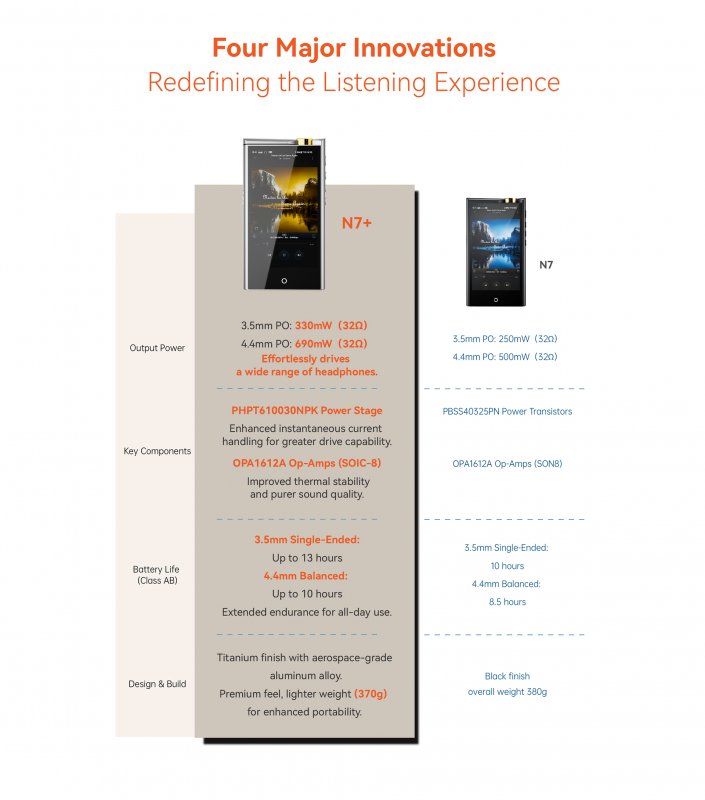

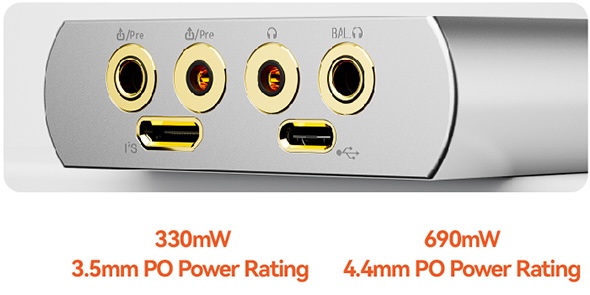

The N7+ uses a fully discrete 4-channel balanced headphone amplifier section, with selectable Class A and Class AB operation. Power output is rated at 330mW from the 3.5mm single-ended headphone output and 690mW from the 4.4mm balanced output, giving the N7+ strong compatibility with a wide range of IEMs and headphones.

For system performance, the N7+ is built around a Snapdragon 665 platform with 4GB RAM, 64GB internal storage and a customised Android 12 operating system. Google Play is preinstalled, allowing access to compatible streaming and music apps, while the included Cayin Music and HiBy Music apps support serious local playback.

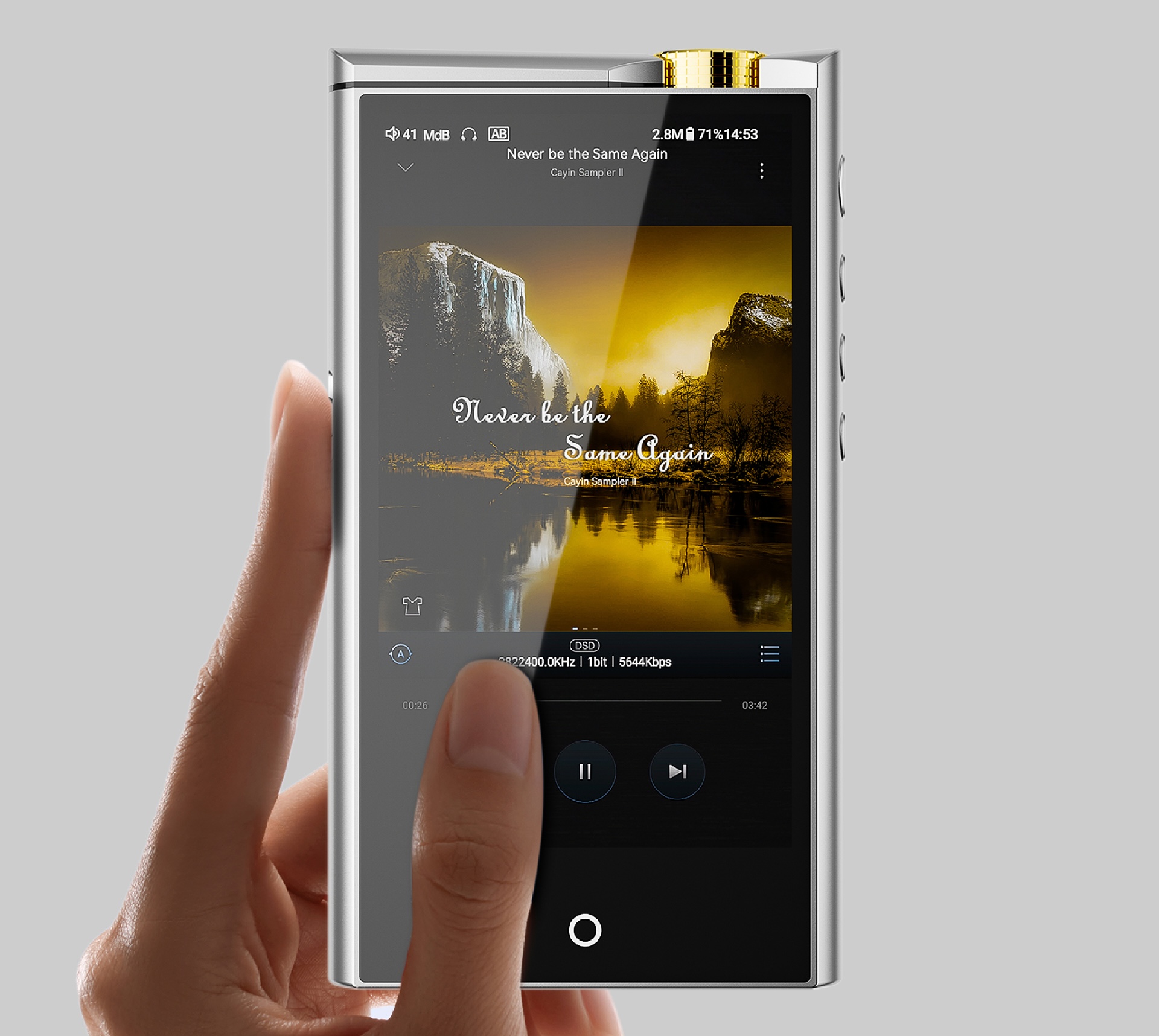

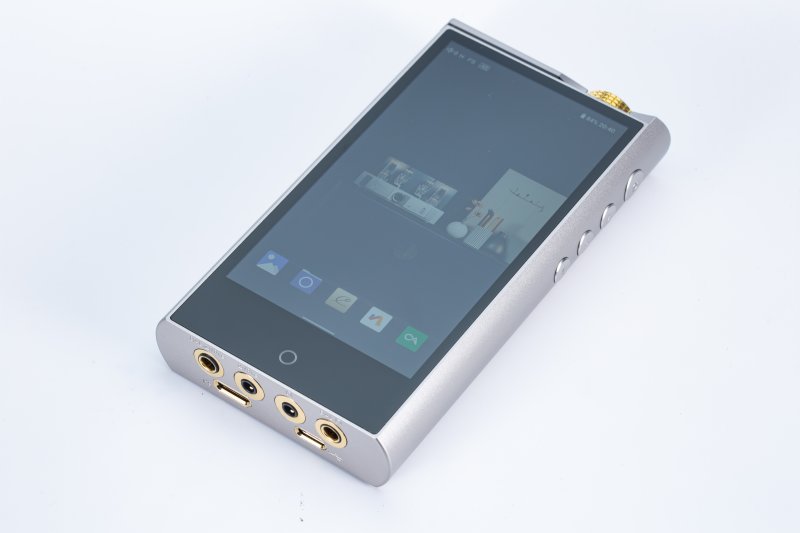

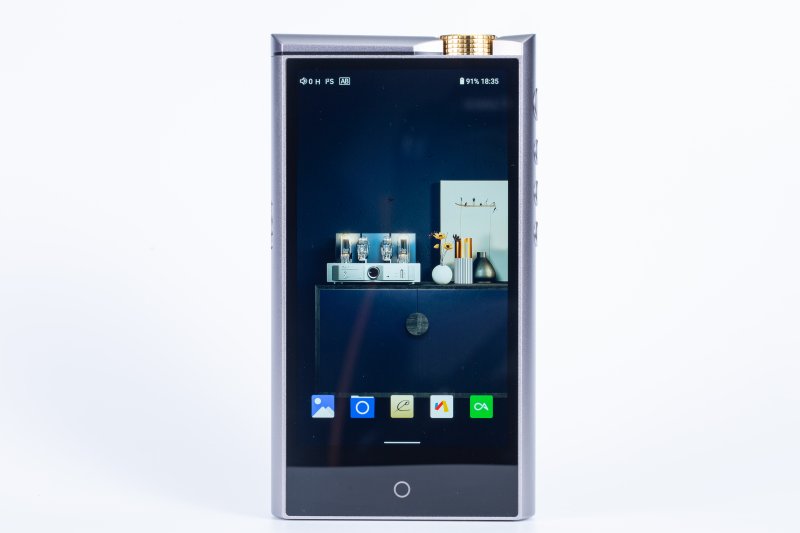

The player includes a 5-inch 1080 × 1920 TFT multi-point touchscreen, 2.4GHz / 5GHz Wi-Fi, Bluetooth 5.0 and microSD card support up to 1TB. Bluetooth support includes LDAC, UAT, AAC and SBC for both transmit and receive use.

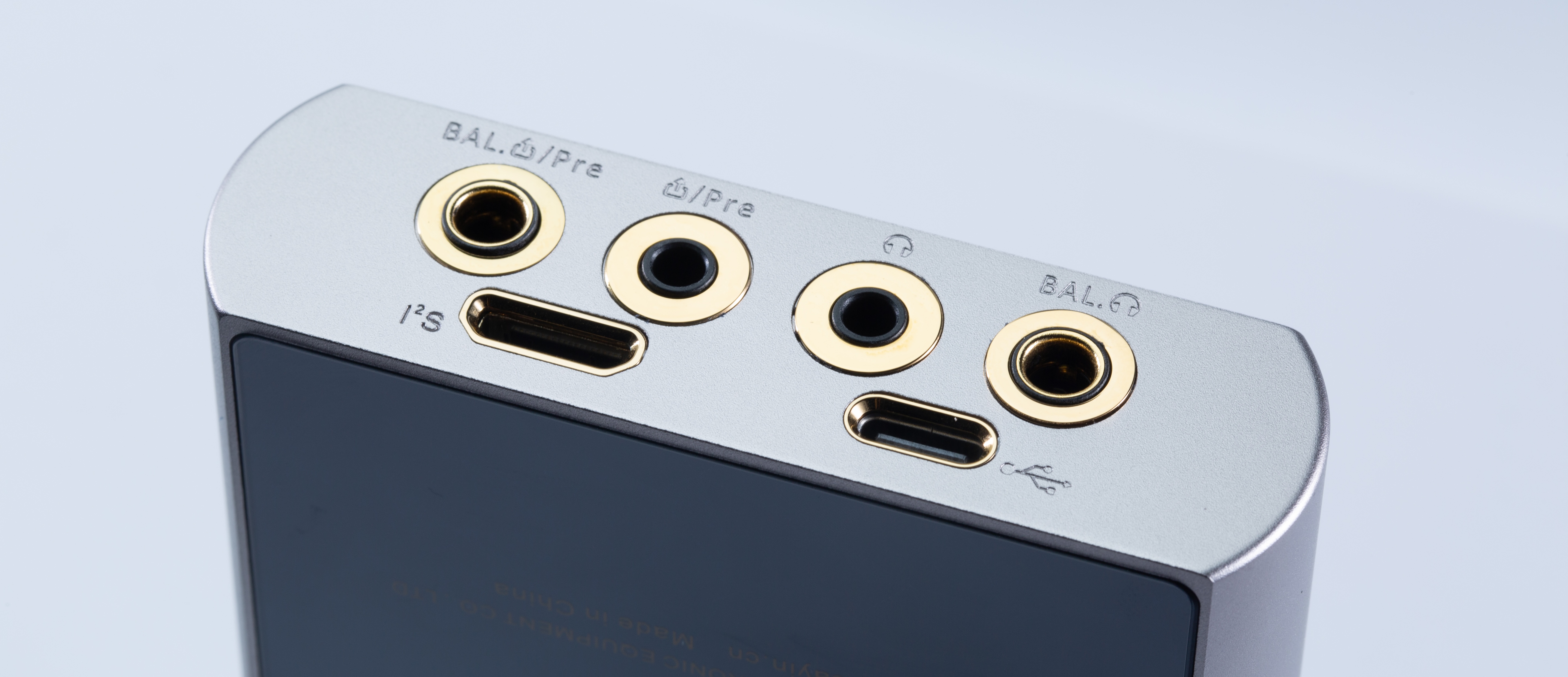

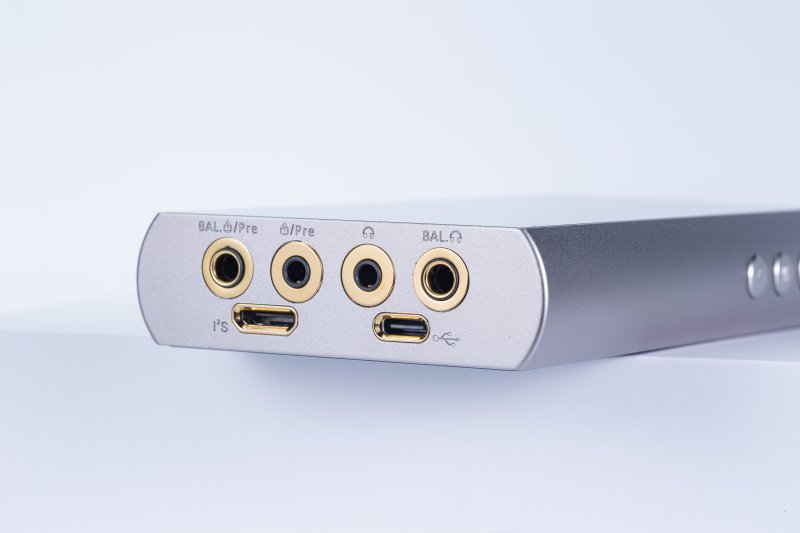

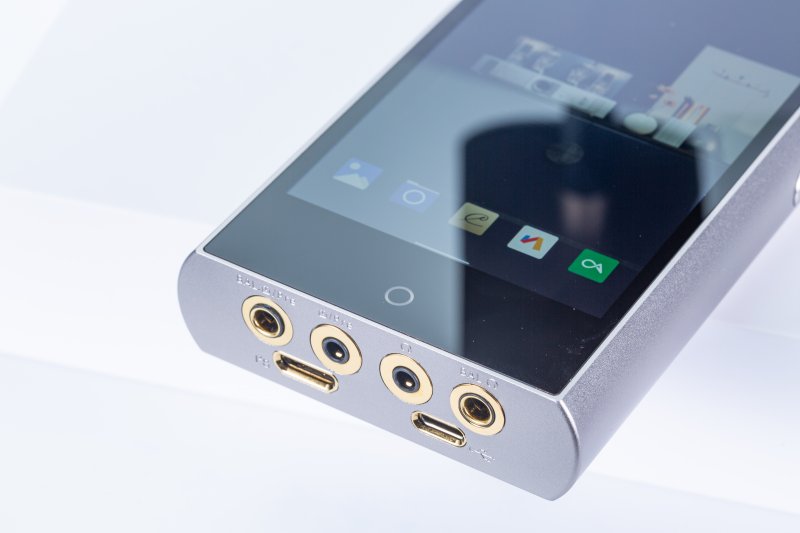

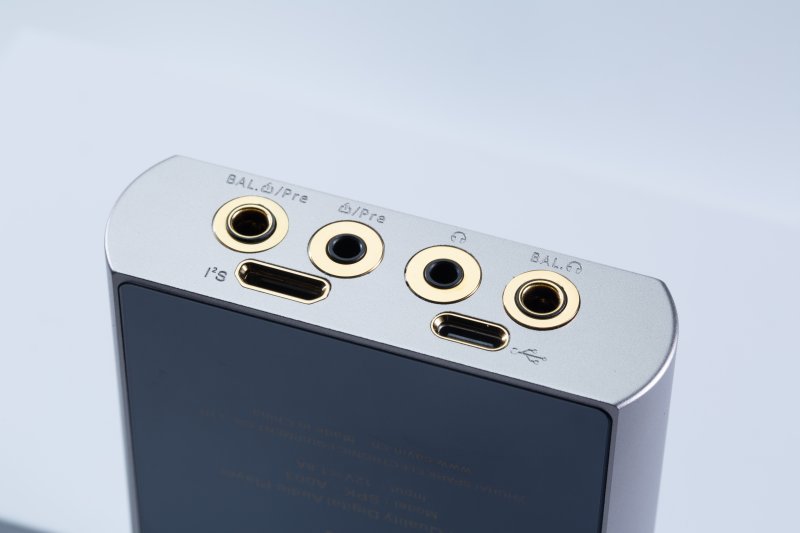

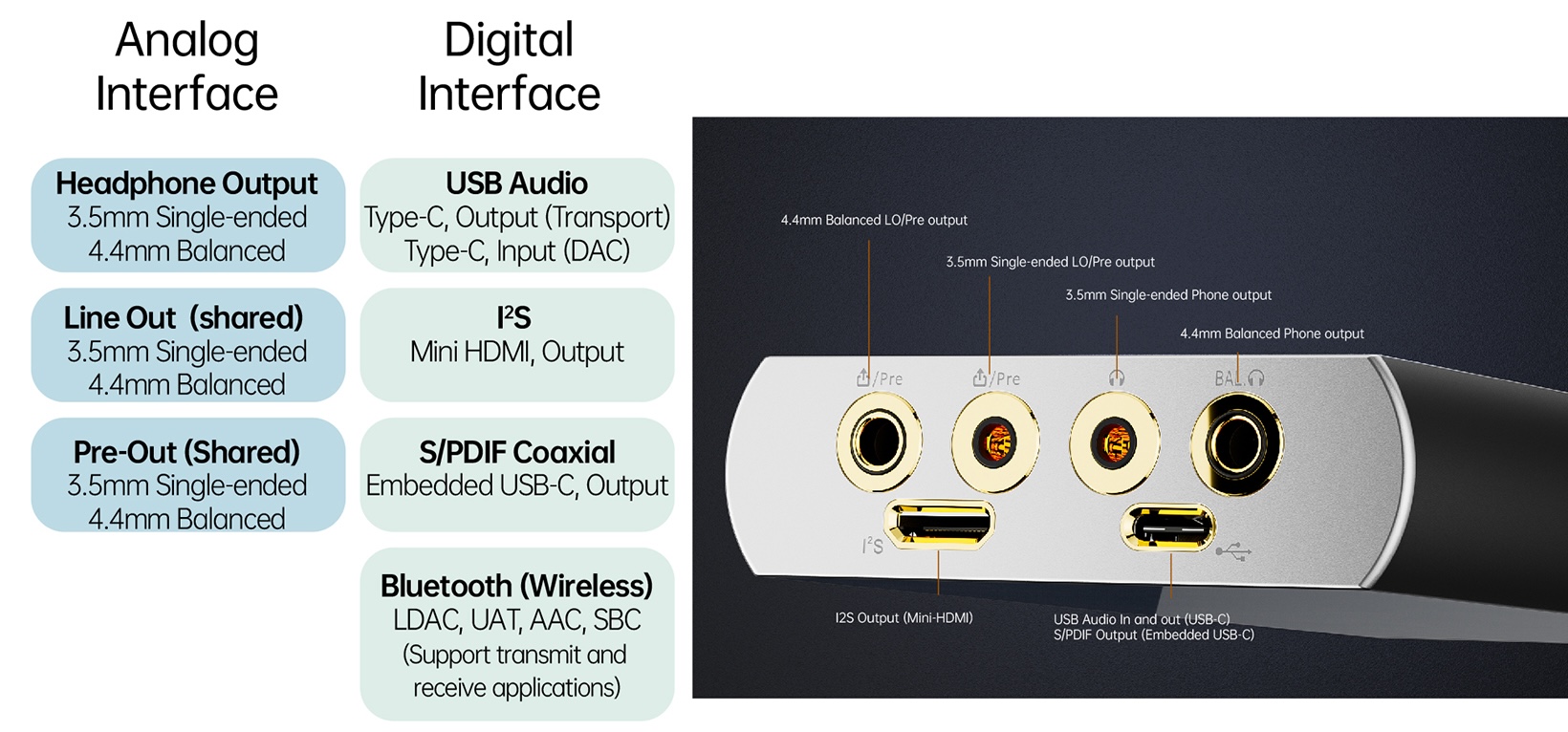

Connectivity is extensive, with 3.5mm and 4.4mm headphone outputs, line out and pre-out support, USB audio in/out, USB DAC mode, I²S output via Mini HDMI and S/PDIF coaxial output via USB-C. This makes the N7+ suitable not only as a portable player, but also as a digital transport, USB DAC and compact source for larger Hi-Fi systems.

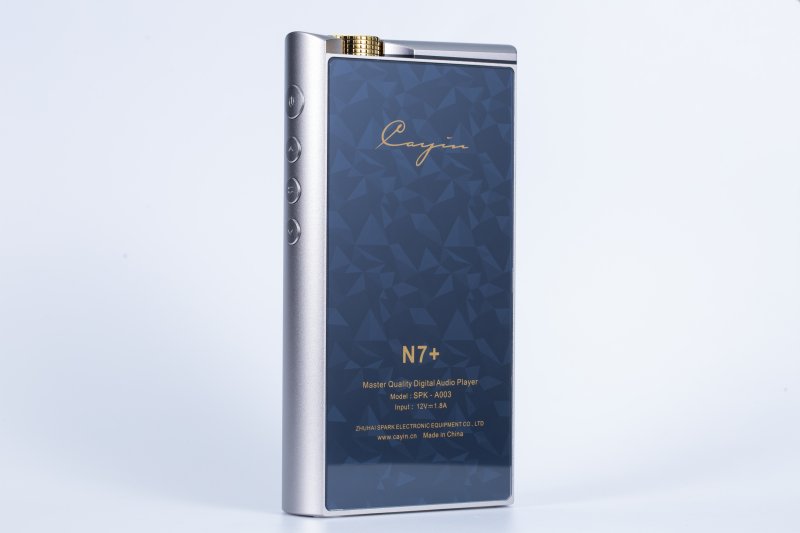

A 9000mAh battery provides up to approximately 13 hours of playback from the 3.5mm output in Class AB mode, with PD2.0 fast charging support for quicker top-ups. The sandblasted CNC aluminium chassis gives the N7+ a premium feel while keeping the design robust and portable.

Product Specifications

• Product name: Cayin N7+
• Product type: Digital Audio Player
• MCU: Snapdragon 665
• Operating system: Customised Android 12

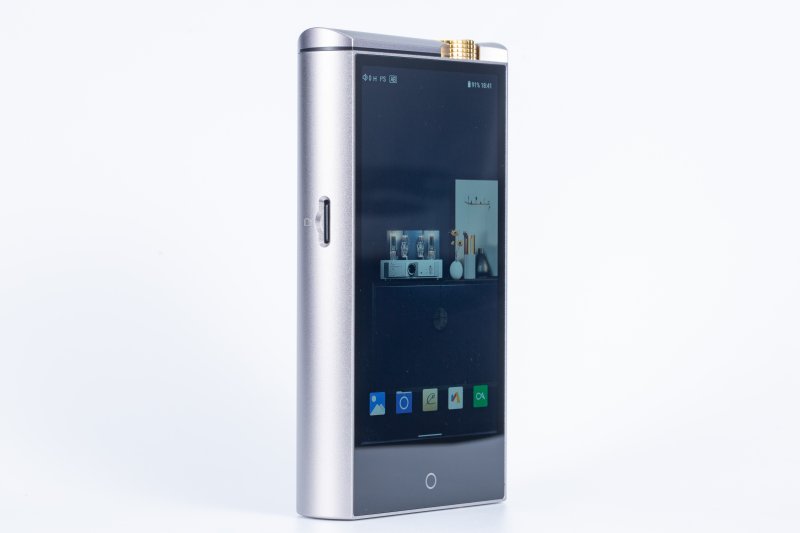

• Display: 5-inch 1080 × 1920 TFT multi-point touchscreen
• Google Play: Preinstalled
• RAM: 4GB LPDDR4
• Internal storage: 64GB

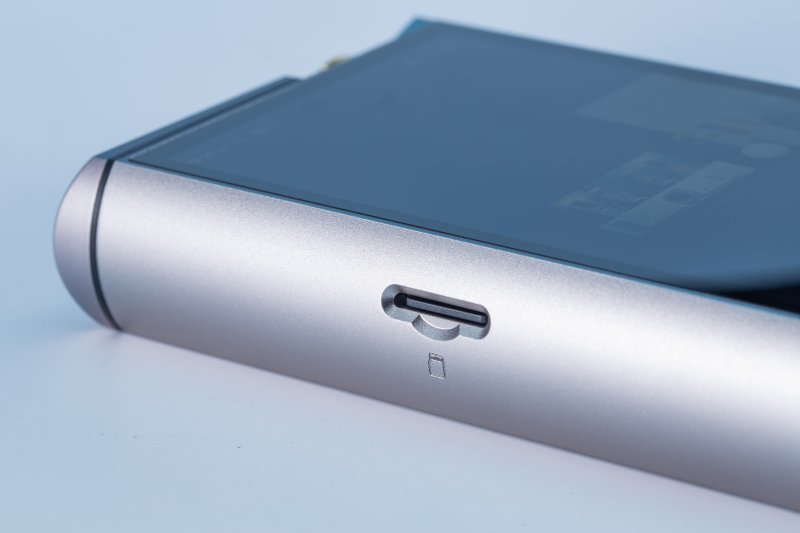

• External storage: microSD / TF card support up to 1TB
• Wi-Fi: 2.4GHz / 5GHz IEEE 802.11 a/b/g/n/ac
• Bluetooth: Bluetooth 5.0
• Bluetooth codecs: LDAC / UAT / AAC / SBC
• Bundled player apps: Cayin Music / HiBy Music with HiByCast support
• Battery: 3.8V 9000mAh / 34.2Wh

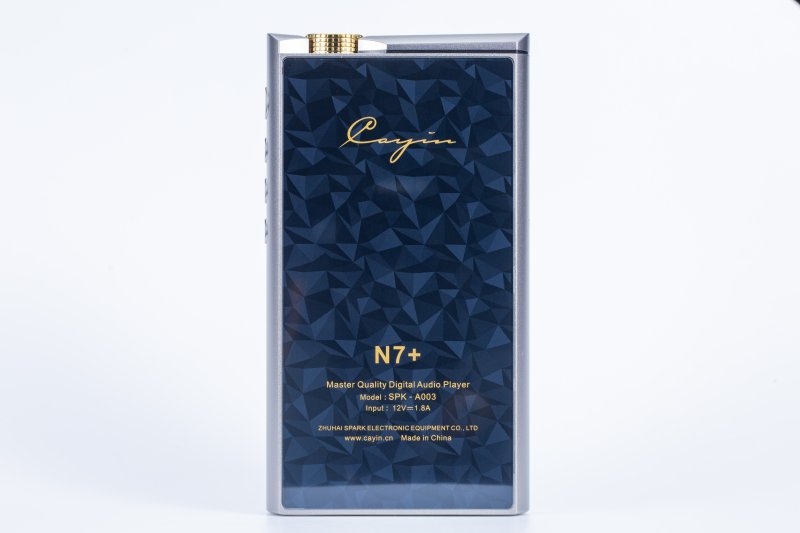

• Chassis: Sandblasted CNC aluminium

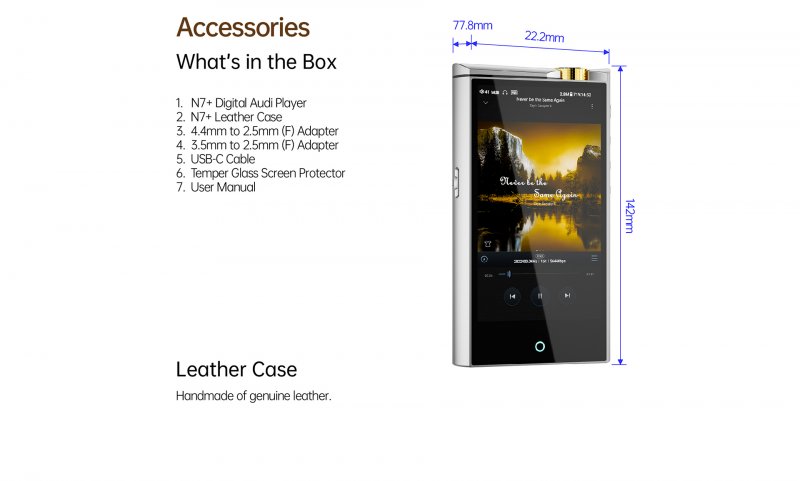

• Dimensions: 142 × 77.8 × 22.2mm
• Weight: Approx. 370g

Audio Architecture

• DAC: Fully balanced discrete 1-bit resistor network DSD DAC
• Audio bridge: DSD direct pass-through, PCM transcode to DSD512, re-clock, de-jitter and re-shaping DDC
• LPF: Discrete BJT circuit
• Volume control: 4-channel electronic volume control
• Headphone amplifier: Discrete 4-channel fully balanced design

Outputs and Connectivity

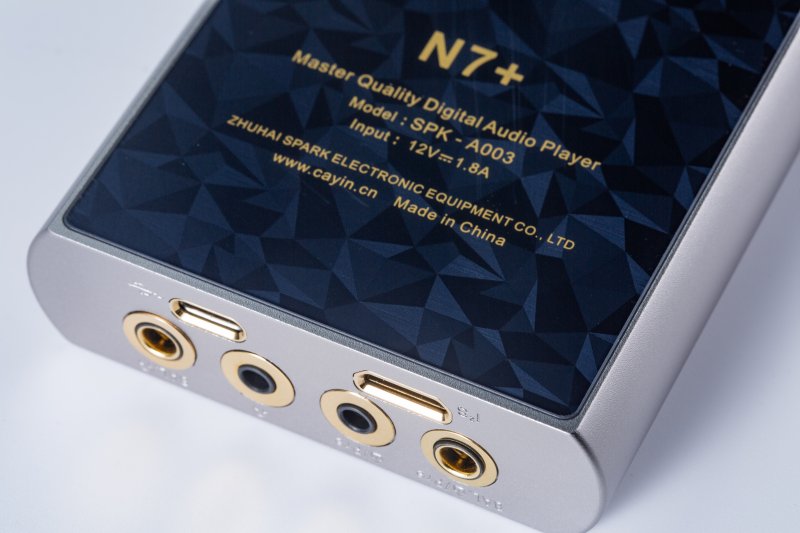

• Headphone output: 3.5mm single-ended / 4.4mm balanced
• Line out and pre-out: 3.5mm single-ended / 4.4mm balanced
• Digital interface: I²S, USB audio in/out, S/PDIF coaxial via USB-C
• USB: USB 3.1, OTG storage, digital audio, PD2.0 charging
• USB DAC mode: Asynchronous USB Audio Class 2.0

Headphone Output

• 3.5mm single-ended output: 330mW @ 32Ω
• 4.4mm balanced output: 690mW @ 32Ω
• Frequency response: 20Hz–20kHz
• THD+N: 0.005% 3.5mm / 0.004% 4.4mm
• Dynamic range: 110dB 3.5mm / 112dB 4.4mm
• SNR: 115dB 3.5mm / 116dB 4.4mm
• Output impedance: 0.6Ω 3.5mm / 1.2Ω 4.4mm

Pre-Amplifier Output

• 3.5mm output level: 4.0Vrms max
• 4.4mm output level: 7.0Vrms max
• Frequency response: 20Hz–20kHz
• THD+N: 0.005% 3.5mm / 0.004% 4.4mm
• SNR: 116dB 3.5mm / 117dB 4.4mm

Battery Life

• 3.5mm headphone output, Class A: Approx. 11 hours
• 3.5mm headphone output, Class AB: Approx. 13 hours
• 4.4mm headphone output, Class A: Approx. 9 hours
• 4.4mm headphone output, Class AB: Approx. 10 hours
• Standard charging: Approx. 5.5 hours
• PD2.0 fast charging: Approx. 3.5 hours from 0–100%
