HiFiMAN EF500 DAC & Headphone Amplifier

HiFiMAN EF500 DAC & Headphone Amplifier

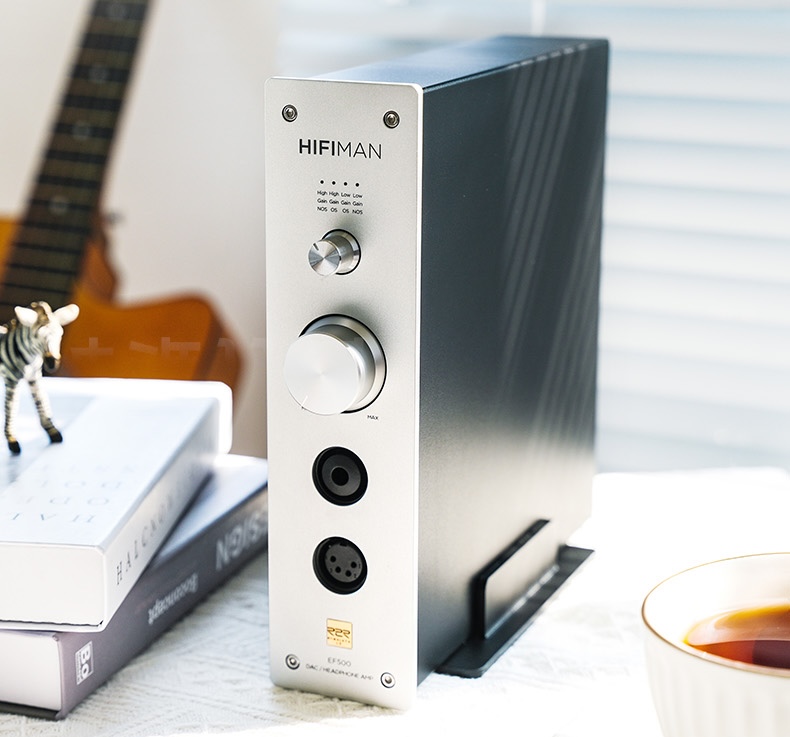

The HiFiMAN EF500 is a desktop DAC and headphone amplifier designed for both high-quality headphone listening and modern music streaming setups. Combining HiFiMAN’s HYMALAYA LE R2R DAC technology with a powerful balanced headphone amplifier, the EF500 is built to deliver detailed, natural sound from digital sources, streaming devices and computers.

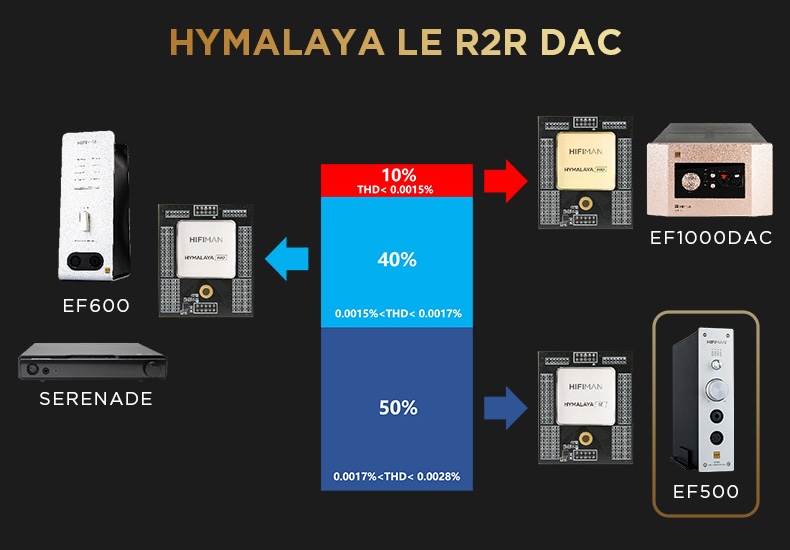

At the heart of the EF500 is HiFiMAN’s HYMALAYA LE R2R DAC, designed to offer low distortion, low noise and a musical sound character. The EF500 supports high-resolution playback up to 32-bit / 768kHz PCM and DSD512, making it suitable for serious desktop listening with high-quality music files and streaming services.

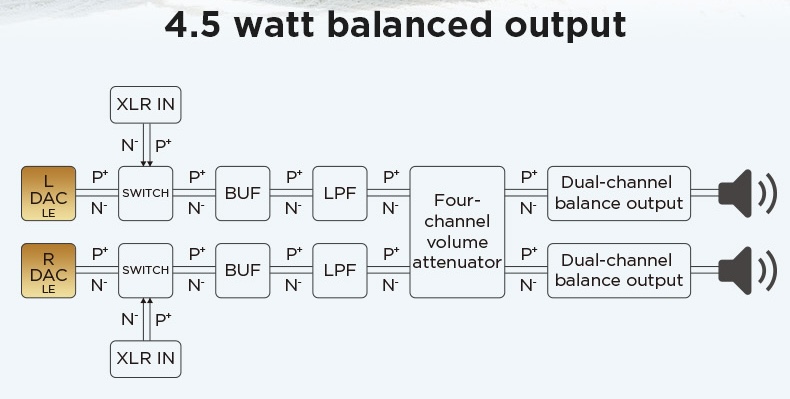

The built-in headphone amplifier delivers up to 4.5W balanced output, giving the EF500 the power needed to drive demanding headphones with confidence. It includes both 6.35mm single-ended and XLR 4-pin balanced headphone outputs, making it compatible with a wide range of headphone setups.

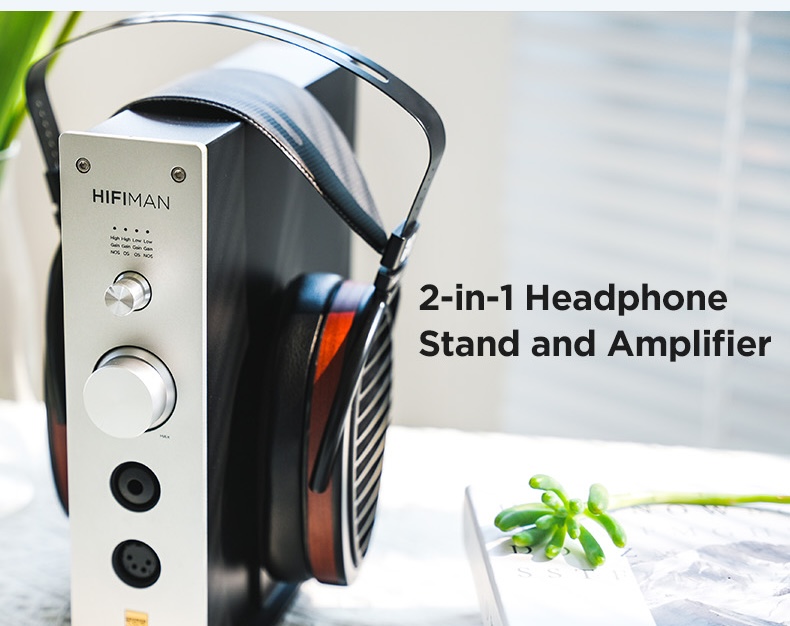

The EF500 also works as a compact headphone stand, allowing you to keep your headphones neatly stored while keeping the amplifier ready for use on a desk or Hi-Fi rack. Its slim vertical design makes it easy to place beside a computer, streamer or listening chair without taking up too much space.

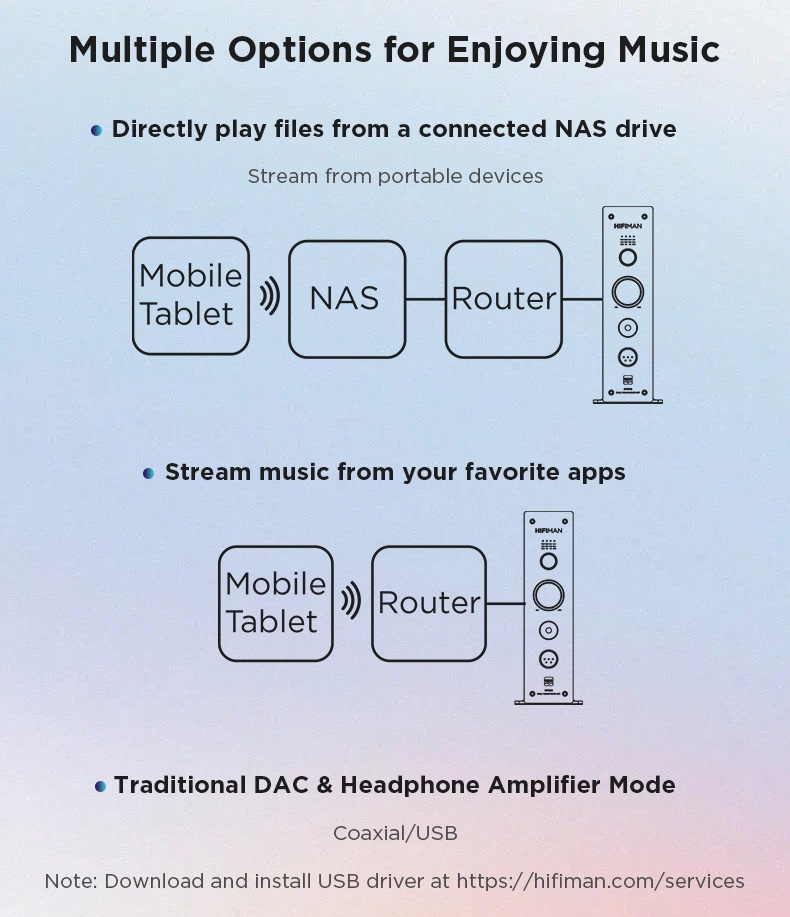

For connectivity, the EF500 offers several listening options. It can play music directly from a connected NAS drive, stream music from mobile devices or favourite apps, and operate as a traditional DAC and headphone amplifier via USB. The rear panel includes USB-C, USB-B, coaxial input, coaxial/analogue function switching, XLR balanced outputs and RCA single-ended outputs, making it flexible enough for both headphone and Hi-Fi systems.

With its R2R DAC design, powerful headphone output and compact 2-in-1 stand design, the HiFiMAN EF500 is a strong choice for listeners wanting a neat desktop audio hub for streaming, DAC use and headphone listening.

Connectivity

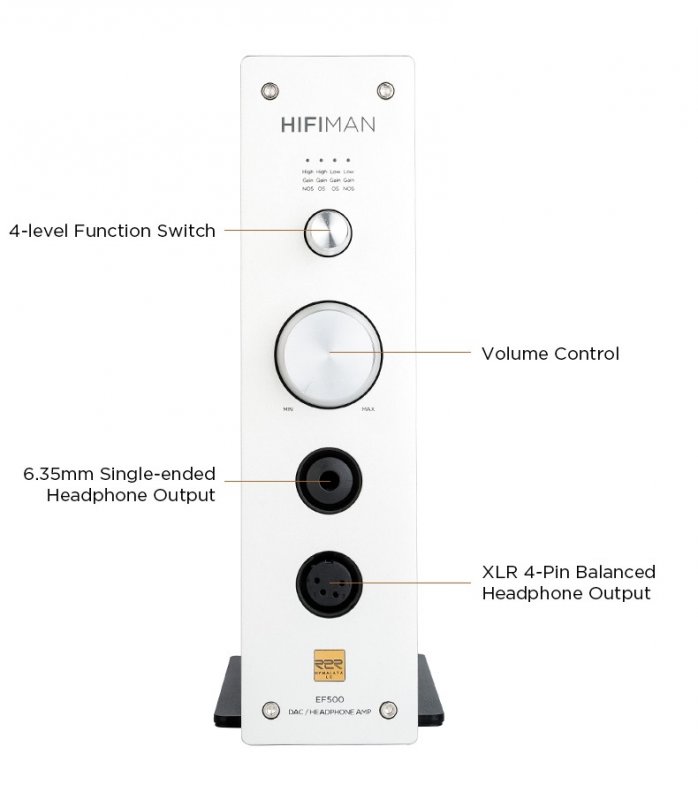

Front Panel

• 4-channel function switch

• Volume control

• 6.35mm single-ended headphone output

• XLR 4-pin balanced headphone output

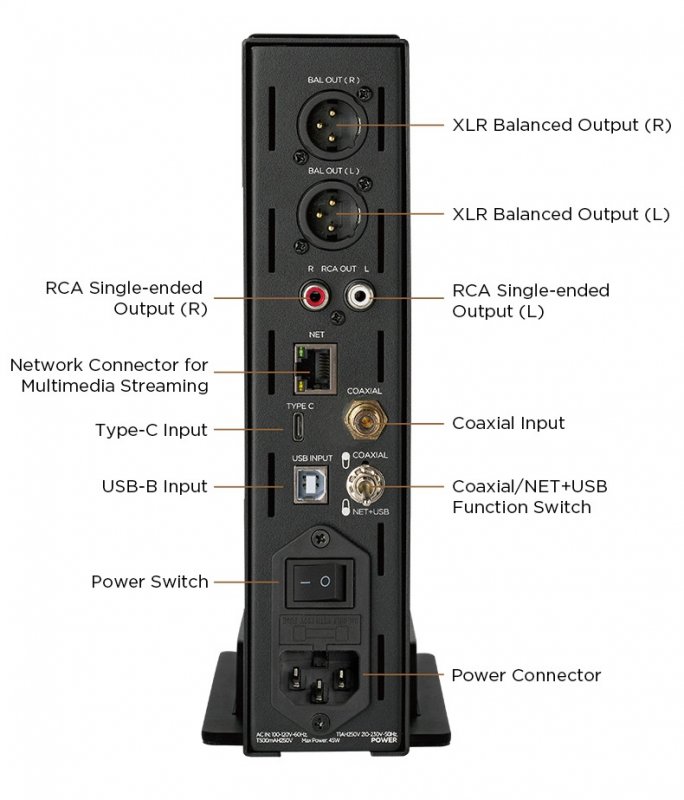

Rear Panel

• XLR balanced output, right

• XLR balanced output, left

• RCA single-ended output, right

• RCA single-ended output, left

• Network connection for NAS and HiFiMAN Serenade streaming

• USB-C input

• USB-B input

• Coaxial input

• Coaxial / analogue function switch

• Power switch

• Power connector

Specifications

DAC: HYMALAYA LE R2R DAC
Output Power: 4.5W balanced output
THD+N, Line Out: 0.0025%, -6dB
Channel Separation: 131dB
Signal-to-Noise Ratio: 117dB, A-weighted
Maximum Power Output: 4.5W @ 32Ω balanced
Supported Resolution: Up to 32-bit / 768kHz PCM and DSD512
Weight: 3.37kg
