True DSD output
Plays SACDs as native DSD64 over I2S, or DoP over coaxial, optical, AES and BNC.
SHANLINGSACD/CD TRANSPORTCustomer reviews (0)
Shanling Onix Zenith XST20 CD Transport
SACDs in their true DSD quality.
A top-loading SACD/CD transport that plays SACDs in true DSD to your DAC, with FPGA-assisted I2S and a 3.4-inch touch screen.
Regular price
£2,099.00
Unit price
Including VAT
Free next day UK delivery
Awaiting stock arrival date — order now to reserve one from the next delivery. Nothing to pay until it arrives.
THE AMP3 DIFFERENCE
Great gear. Even better service.
Order by 12 noon, Monday to Friday, for next day delivery. Destination and stock availability apply.
Not sure it’s your perfect match? Talk to an audio specialist
Shanling Onix Zenith XST20 CD Transport
A little extra. A better pairing.
Better together.
Hand-picked pairings for this product. Choose one — we'll add them together.
MEET THE Onix
SACDs in their true DSD quality.
A top-loading SACD/CD transport that plays SACDs in true DSD to your DAC, with FPGA-assisted I2S and a 3.4-inch touch screen.
Optimised disc playback
A top-loading design with a classic clamp for single- and multi-layer SACDs, CDs and MQA-CDs.
Flexible I2S
FPGA-assisted I2S output for matching with a wide range of high-end DACs.
Read the full description

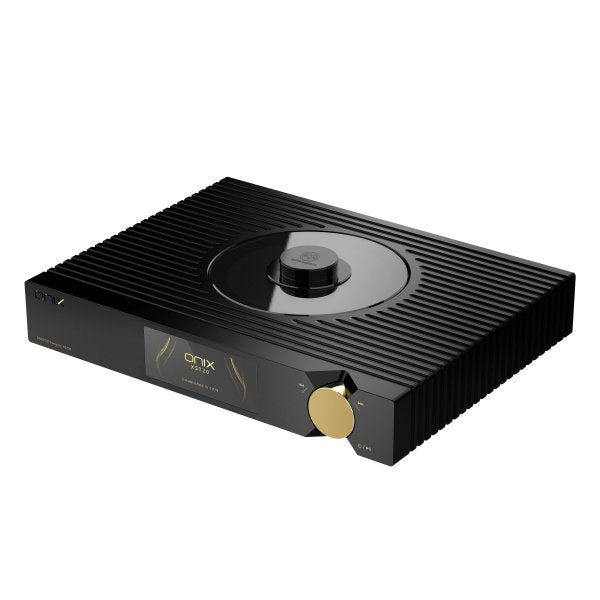

The ONIX Zenith XST20 is a top-loading SACD and CD transport for a separate DAC, the first model in ONIX’s high-end Zenith line. It plays SACDs in true DSD, either as native DSD64 over I2S or as DoP over coaxial, optical, AES and BNC, and its FPGA-assisted I2S with ten pinout modes means it works with almost any I2S DAC.
True DSD from SACD
Many transports can’t send the DSD layer of an SACD to an external DAC. The XST20 can, to any DSD-capable DAC. It supports single- and multi-layer SACDs with layer switching, standard CDs and MQA-CDs (ONIX quotes 4x expansion), all with smooth track transitions.
I2S that works

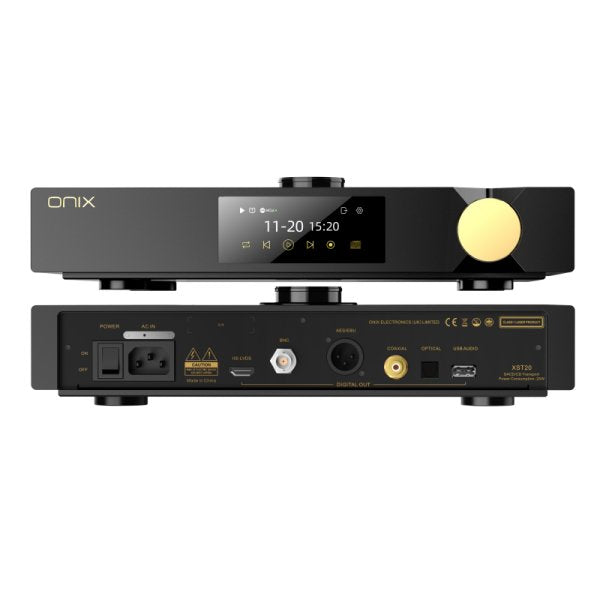

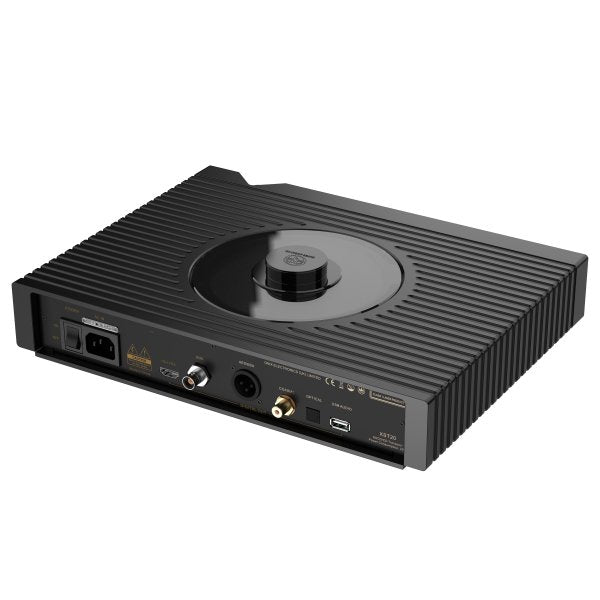

I2S has no fixed standard for its pin layout, which has caused compatibility problems between transports and DACs. The XST20’s FPGA hardware can switch between ten I2S pinout modes to suit virtually any I2S DAC, alongside USB, AES, BNC, coaxial and optical outputs, so it is a good match for high-end DACs.
Built for one job
The XST20 focuses entirely on the best possible playback of SACDs and CDs. There is no streaming, wireless or app, just the pure lossless quality of the disc. A top-loading HD870 drive with a traditional disc clamp, a built-in 45.1584MHz clock for precise data processing, and an ultra-clean power supply with a Talema 25VA toroidal iron-core transformer sit in a sturdy chassis CNC-machined from aluminium in the classic ONIX style, with gold details. A 3.4-inch touch screen gives direct access to the settings, and ONIX’s remote control is included.
| I2S | CD: PCM 44.1kHz · SACD: native DSD64 · 10 pinout modes |
|---|---|
| Coaxial, optical, BNC, AES | CD: PCM 44.1kHz · SACD: DSD64 via DoP or D2P |
| USB | CD: PCM 44.1kHz (no SACD) |
| Discs | CD, single-layer SACD, multi-layer SACD, MQA-CD |
| Drive and power | HD870 top-loading drive · 45.1584MHz clock · Talema 25VA toroidal transformer |
| Screen | 3.4-inch touch screen |
| Size and weight | 320 × 240 × 72mm (with base) · 5.2kg |
Good to know
- A transport has no DAC or analogue output. You need a separate DAC, and for SACD in DSD it must accept DSD.
- The USB output does not carry SACD.
- The power supply is region-locked (110V or 220V), so it can’t be switched for use abroad.
- This is an order-on-demand item: we order it in when you place your order.
- In the box: XST20, CD clamp, CD cover, remote control, power cable and manuals.
In the box
- ONIX Zenith XST20 CD transport
- CD clamp
- CD cover
- Remote control
- Power cable
- Manuals
THE FINER DETAILS
Built for
better listening.
Know what you’re choosing.
Find the right fit for your setup.
- Design
- Top-loading SACD/CD transport
- Screen
- 3.4-inch touch screen
- Compatibility
- CD, single- and multi-layer SACD, MQA-CD
- Remote control
- ONIX remote control included
- Size (H × W × D)
- 72 × 320 × 240mm
- Weight
- 5200g
- Digital outputs
- I2S (native DSD64, 10 pinout modes) · coaxial · optical · BNC · AES (SACD as DSD64 DoP or D2P) · USB (CD only)
- Power
- Mains (25VA Talema transformer)
Specifications are based on manufacturer information and may change.
