Dual flagship DACs
Two ES9039PRO chips with an in-house I/V stage built from eight OPA1611 op-amps.
SHANLINGDESKTOP DACCustomer reviews (0)
Shanling Onix Zenith XDA20 High End ESS DAC
High-end DAC for the Zenith line.
A high-end desktop DAC with dual ESS ES9039PRO, eight OPA1611 op-amps, Talema transformers and FPGA-assisted I2S input.
Regular price
£2,399.00
Unit price
Including VAT
Free next day UK delivery
Awaiting stock arrival date — order now to reserve one from the next delivery. Nothing to pay until it arrives.
THE AMP3 DIFFERENCE
Great gear. Even better service.
Order by 12 noon, Monday to Friday, for next day delivery. Destination and stock availability apply.
Not sure it’s your perfect match? Talk to an audio specialist
Shanling Onix Zenith XDA20 High End ESS DAC
A little extra. A better pairing.
Better together.
Hand-picked pairings for this product. Choose one — we'll add them together.
MEET THE Onix
High-end DAC for the Zenith line.
A high-end desktop DAC with dual ESS ES9039PRO, eight OPA1611 op-amps, Talema transformers and FPGA-assisted I2S input.
Superior power supply
15W and 25W Talema transformers with Vishay capacitors for clean, stable power.
Every input covered
USB, I2S with 10 pinouts, AES, BNC, coaxial and optical, with RCA, XLR and headphone outputs.
Read the full description

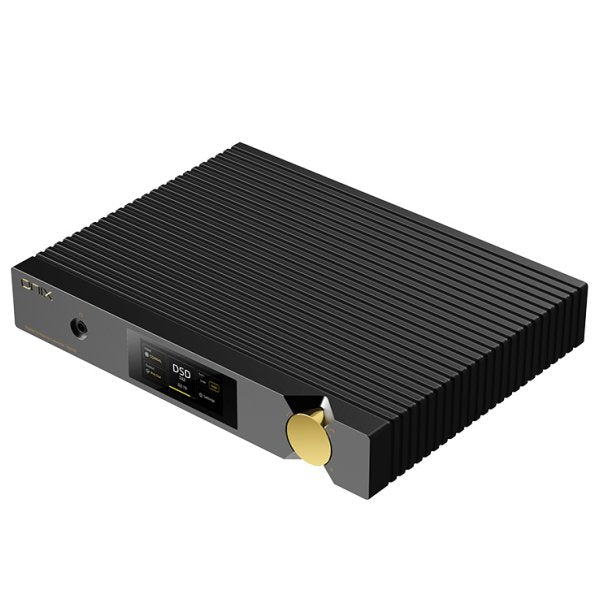

The ONIX Zenith XDA20 is a high-end desktop DAC and preamplifier, the second member of ONIX’s Zenith line of high-end desktop and speaker components, designed to pair with the XST20 SACD transport and the XMT20 streamer. Designed by ONIX, the hi-fi brand born in Brighton in the 1980s, and made by Shanling, it takes the ESS ES9039PRO from the ONIX Miracle system and doubles it, with every digital input a serious system needs, balanced and single-ended outputs and a 1.6W headphone amplifier.
Two flagship DACs and the Brighton I/V stage
The XDA20 is inspired by ONIX’s Miracle system and uses the same ESS flagship DAC, upgraded to a pair of ES9039PROs for resolution and dynamics up to 768kHz/32-bit and DSD512. Eight OPA1611 op-amps form ONIX’s in-house “Brighton” I/V conversion stage, for a delicate sound presentation. The balanced outputs reach 127dB signal-to-noise ratio with 0.0003% THD+N.
A superior power supply
Clear, stable power is key to true high fidelity, so the XDA20 combines iron-core 25W and 15W Talema transformers with four 3,300µF/63V Vishay capacitors for power filtering.
Built for I²S
ONIX designed the Zenith line around the I²S connection between source and DAC, and the XDA20 performs at its best from its I²S input, ideally with the XST20 or XMT20. To match other brands’ I²S transports too, ONIX added an FPGA-assisted I²S circuit with 10 different pinouts.
The heart of your system

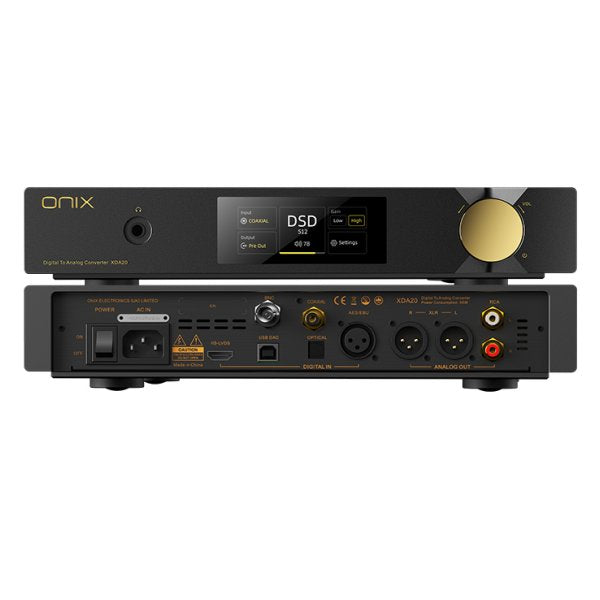

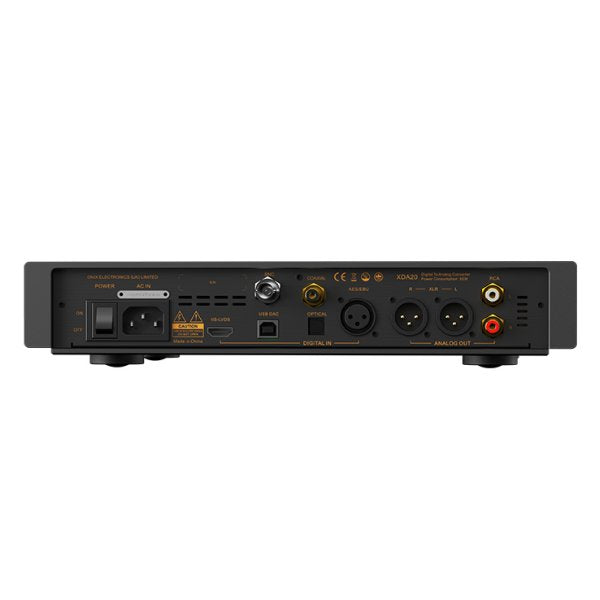

ONIX focused on the XDA20’s performance as a DAC, with its best sound on the RCA and XLR outputs, used either as a pure line output or as a pre-amplifier for speakers. For headphones, a compact TPA6120 amplifier gives up to 1.6W into 32Ω from the 6.35mm output, with two gain levels. Optical, coaxial, AES and BNC inputs, and a dedicated XMOS XU316 USB input for computers, connect your other components.
Classic ONIX look, simple control

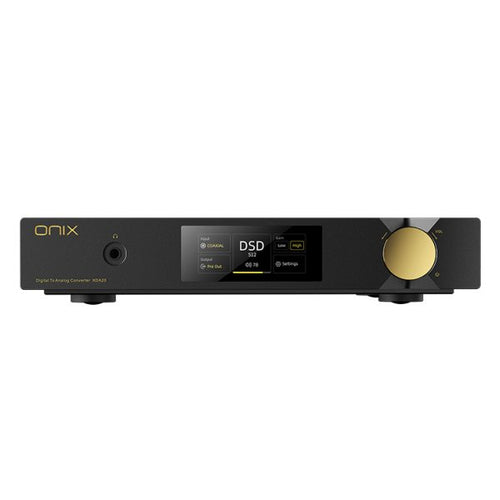

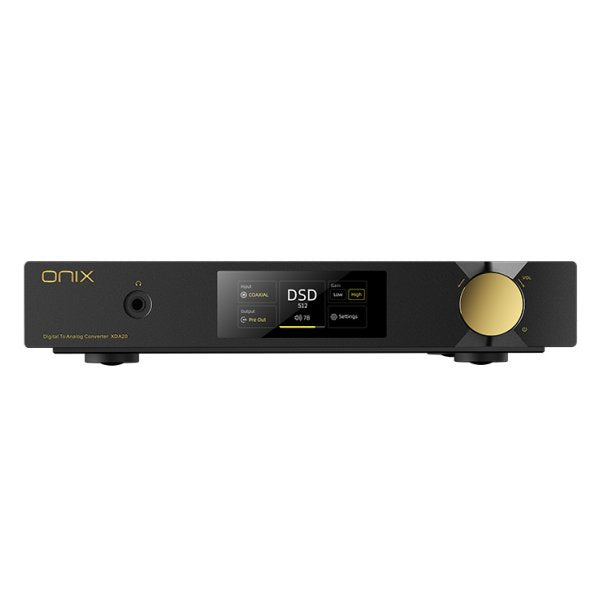

The robust aluminium body is CNC-machined in ONIX’s classic black-and-gold style. A 3.4-inch touchscreen gives a simple, quick system, with a volume wheel and a remote control.
| DAC | 2 × ESS ES9039PRO · “Brighton” I/V stage with 8 × OPA1611 |
|---|---|
| Digital inputs | I²S (FPGA-assisted, 10 pinouts) and USB (XMOS XU316): 768kHz/32-bit, DSD512 · optical, coaxial, AES, BNC: 192kHz/24-bit, DSD64 |
| XLR output | 4.2V · SNR 127dB · dynamic range 127dB · separation 126dB · THD+N 0.0003% |
| RCA output | 2.1V · SNR 123dB · dynamic range 123dB · separation 122dB · THD+N 0.0003% |
| 6.35mm headphone | TPA6120 · 101mW (low) / 1,620mW (high) @ 32Ω · 252mW @ 300Ω · SNR 120dB · 3.3Ω |
| Power | 25W + 15W Talema transformers · 4 × 3,300µF/63V Vishay capacitors |
| Control and size | 3.4-inch touchscreen · volume wheel · remote · 320 × 240 × 62mm · 5.7kg |
Good to know
- The pre-out mode lets the XDA20 drive a power amplifier or active speakers directly.
- In the box: XDA20, remote control, power cable and manuals.
In the box
- ONIX Zenith XDA20
- Remote control
- Power cable
- Manuals
THE FINER DETAILS
Built for
better listening.
Know what you’re choosing.
Find the right fit for your setup.
- DAC
- 2 × ESS ES9039PRO
- Headphone outputs
- 6.35mm
- Output power
- 1,620mW @ 32Ω · 252mW @ 300Ω (6.35mm, high gain) · 101mW @ 32Ω (low gain)
- Frequency response
- 20Hz–40kHz (−0.5dB)
- Hi-res support
- USB and I2S: PCM 768kHz/32-bit, DSD512 · S/PDIF inputs: PCM 192kHz/24-bit, DoP64
- Screen
- 3.4-inch touchscreen
- Gain modes
- Low / high (headphone output)
- Remote control
- Remote control (included) · touchscreen · volume wheel
- Signal-to-noise ratio
- 127dB (XLR) · 123dB (RCA)
- Distortion (THD+N)
- 0.0003% (line outputs)
- Output impedance
- 3.3Ω (headphone)
- Crosstalk
- 126dB (XLR) · 122dB (RCA)
- Size (H × W × D)
- 62 × 320 × 240mm
- Weight
- 5700g
- Amplification
- Eight OPA1611 in the in-house “Brighton” I/V stage · TPA6120 headphone amp
- Line outputs
- RCA (2.1V) · XLR balanced (4.2V), line-out or pre-out
- Inputs
- USB (XMOS XU316) · I2S (FPGA-assisted, 10 pinouts) · AES/EBU · BNC · coaxial · optical
- Power
- Mains, 25W + 15W Talema transformers, Vishay capacitors
Specifications are based on manufacturer information and may change.
