Premium components
Dual CS43198 DACs and SGM8262 amps support up to 32-bit/768kHz and DSD256.
SHANLINGDONGLE DACCustomer reviews (0)
Shanling Onix XI1 High-End Dongle DAC (Box opened)
ONIX design, high-end sound.
A high-end dongle with dual CS43198 DACs, dual SGM8262 amps, up to 500mW balanced, a 0.87-inch screen and hardware buttons.
Regular price
£89.99
£129.99
Save £40.00
Unit price
Including VAT
Free next day UK delivery
Clearance product Full manufacturer warranty
ConditionBox opened
- Packaging
- Good
- Manuals
- Good
- Functional
- Good
- Accessories
- Good
- Software
- Good
THE AMP3 DIFFERENCE
Great gear. Even better service.
Order by 12 noon, Monday to Friday, for next day delivery. Destination and stock availability apply.
Not sure it’s your perfect match? Talk to an audio specialist
Shanling Onix XI1 High-End Dongle DAC (Box opened)
A little extra. A better pairing.
Better together.
Hand-picked pairings for this product. Choose one — we'll add them together.
MEET THE Onix
ONIX design, high-end sound.
A high-end dongle with dual CS43198 DACs, dual SGM8262 amps, up to 500mW balanced, a 0.87-inch screen and hardware buttons.
Hands-on control
A crisp 0.87-inch screen and three hardware buttons for playback and volume.
Balanced power

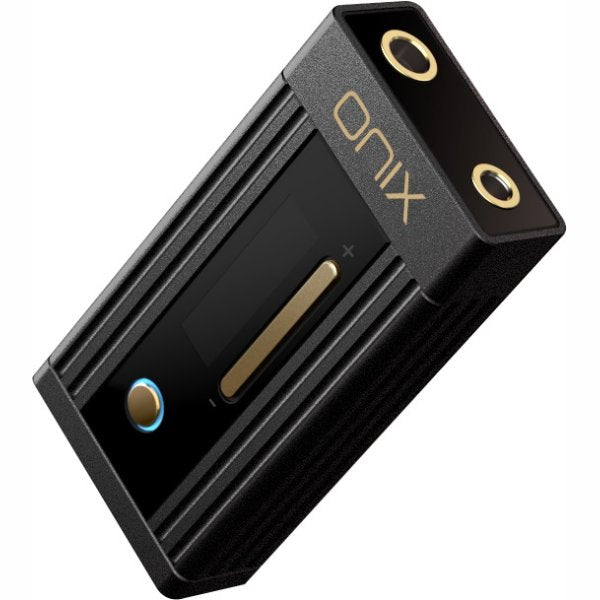

Up to 500mW at 32Ω with low output impedance and 3.5mm and 4.4mm outputs.
Read the full description
The ONIX Alpha XI1 is the smallest and most affordable DAC from ONIX, the hi-fi brand born in Brighton in the 1980s, now designed by ONIX and made by Shanling. In a black-and-gold body of about 38g, a pair of Cirrus Logic CS43198 DACs feed two SGM8262 headphone amplifiers in a fully balanced design, giving up to 500mW into 32Ω from the 4.4mm output: enough, ONIX says, for anything from sensitive in-ear monitors to demanding full-size planar headphones. A 0.87-inch OLED screen and three buttons put every setting on the device itself.
Excellent sound in the smallest package
The two top-of-the-line CS43198 DACs give exquisitely clean sound with ONIX’s own tuning, running fully balanced into the dedicated SGM8262 amplifiers for a smooth, clean sound and an ultra-low background noise, dead quiet even for the most sensitive ears. The balanced output reaches 129dB signal-to-noise ratio and dynamic range, and the 3.5mm output 126dB SNR, with 0.0004–0.0005% distortion. It plays PCM up to 32-bit/768kHz and DSD256.
Advanced control on the device

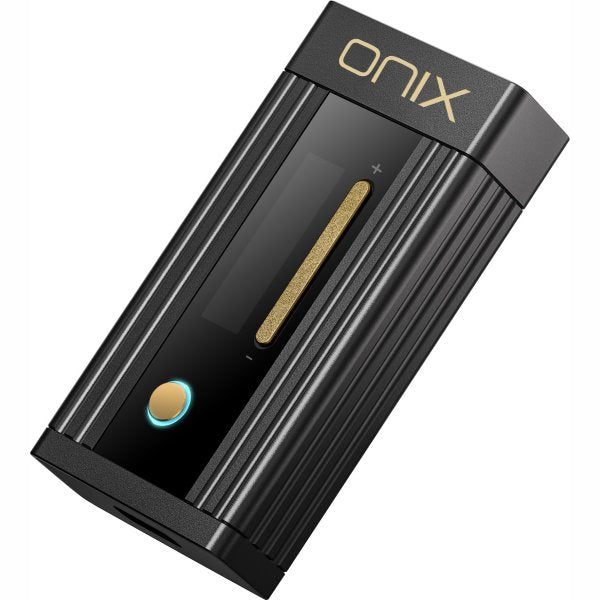

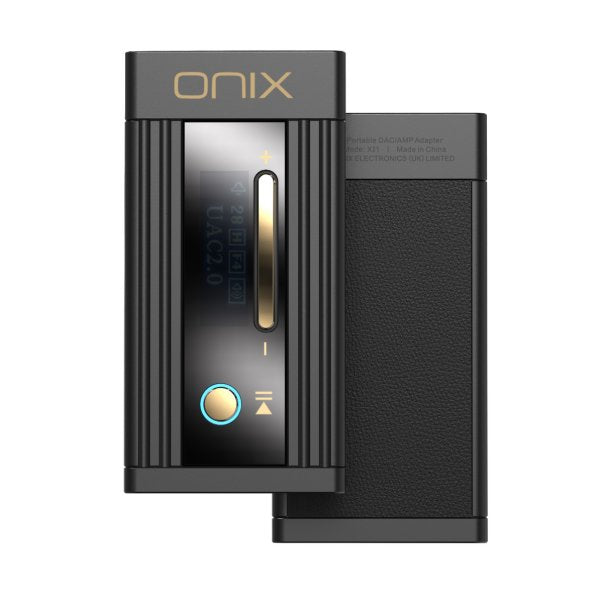

The 0.87-inch OLED screen gives quick access to a range of settings directly on the XI1, with no need for an app, so it works with an unlimited range of systems. Three physical buttons control the volume and playback and adjust the settings; choose from eight typeface styles to suit your taste, and a screen saver saves battery and prolongs the screen’s life. An RGB light shows the sample rate, so you know hi-res playback is working.
An advanced USB DAC
A 32-bit ARM architecture adds system features, and intelligent power management makes playback about 30% less power-hungry and cuts standby consumption by up to 80%, which is kinder to your phone’s battery. Two gain levels and five digital filters let you match it to your headphones, and the Eddict Player app on Android gives further control.
Traditional ONIX design, minimised

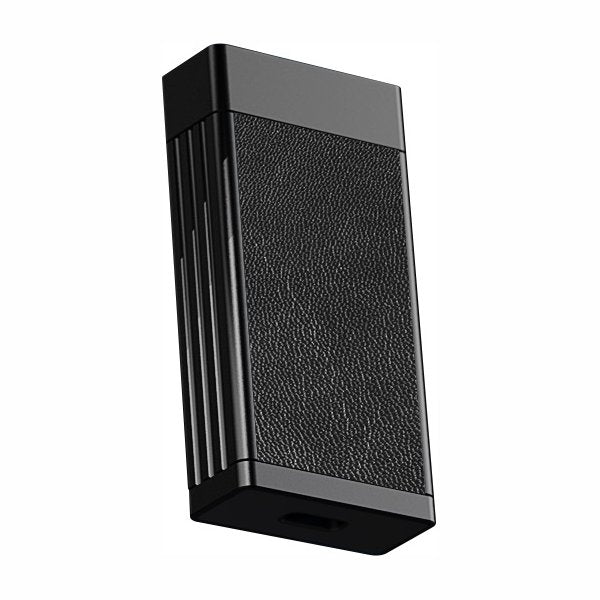

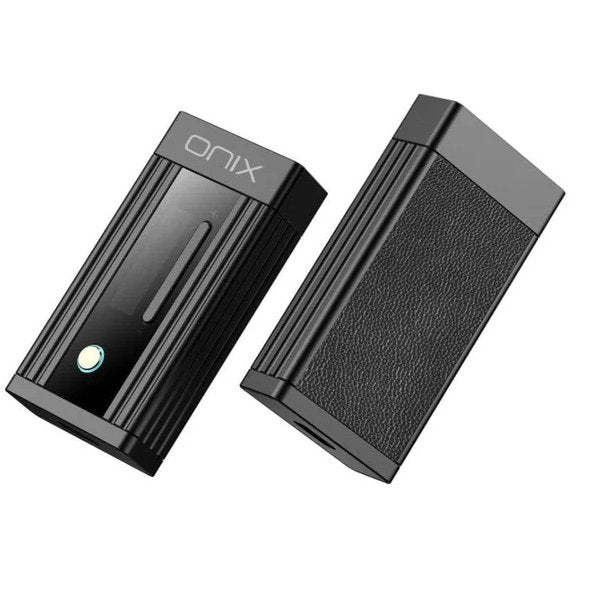

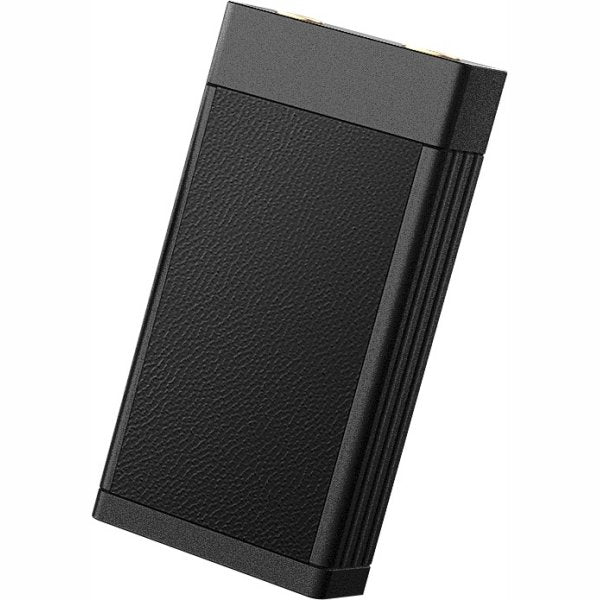

Even ONIX’s smallest DAC follows its traditional standards of design and build: deep black with golden-yellow details, in a sturdy body of carefully machined aluminium and glass with a smooth faux-leather back. A standard USB-C socket lets you choose any cable you need.
| DAC and amp | 2 × Cirrus Logic CS43198 · 2 × SGM8262, fully balanced · 32-bit ARM |
|---|---|
| 4.4mm balanced | 500mW @ 32Ω (4.0V) · SNR 129dB · DNR 129dB · THD+N 0.0005% · separation 99dB · 0.8Ω |
| 3.5mm | 180mW @ 32Ω (2.4V) · SNR 126dB · DNR 125dB · THD+N 0.0004% · separation 71dB · 0.4Ω |
| Formats | PCM up to 32-bit/768kHz · DSD256 |
| Controls | 0.87-inch OLED · 3 buttons · low/high gain · 5 digital filters · RGB sample-rate light |
| Connection | Standard USB-C socket · Android, iOS, Windows and Mac |
| Size and weight | 63.8 × 32 × 14mm · about 38g |
Good to know
- iPhones and iPads with a Lightning port need a USB-C to Lightning cable such as Shanling’s L3 (sold separately).
- The Eddict Player app is for Android; all the main settings are also on the device.
- In the box: XI1 and user manual.
In the box
- Shanling Onix XI1
- User Manual
THE FINER DETAILS
Built for
better listening.
Know what you’re choosing.
Find the right fit for your setup.
- Headphone outputs
- 3.5mm single-ended · 4.4mm balanced
- Output power
- 500mW @ 32Ω balanced · 180mW @ 32Ω single-ended
- Hi-res support
- PCM 768kHz/32-bit · DSD256
- Screen
- 0.87" monochrome
- Size (H × W × D)
- 64 × 32 × 14mm
- Weight
- 38g
- Inputs
- USB-C
Specifications are based on manufacturer information and may change.
FROM FELLOW LISTENERS
Customer reviews.
Be the first to share your experience.
There are no customer reviews for this product yet.
