Clean, powerful output
A pair of Japanese Sanken transistors with 420W dual toroidal transformers.
SHANLINGINTEGRATED AMPLIFIERCustomer reviews (0)

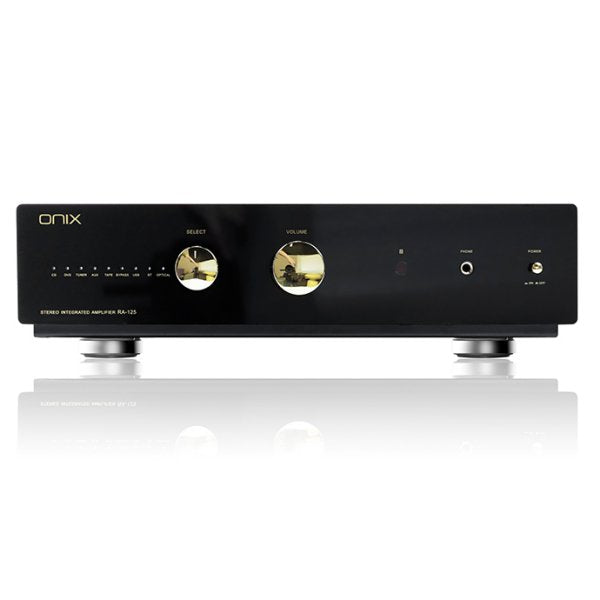

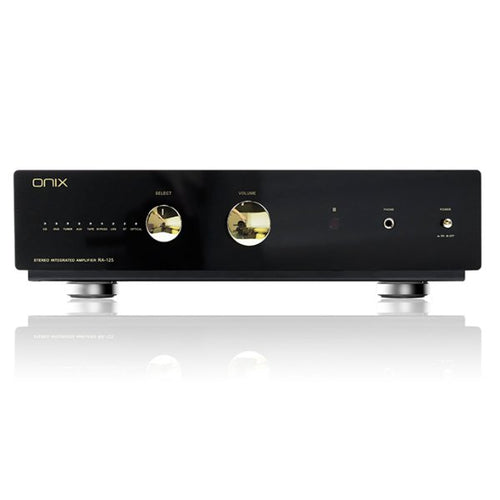

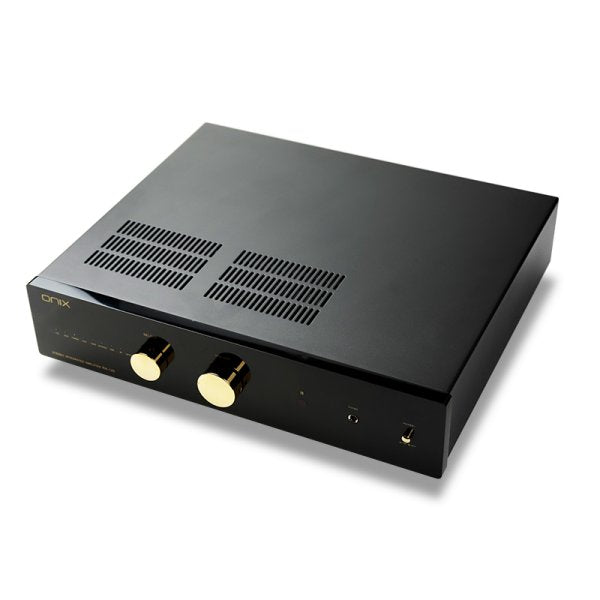

ONIX RA-125 Integrated Amplifier
Classic amp, modern connections.
An integrated amp with a Sanken transistor output stage, AKM AK4493EQ DAC, XMOS USB input and Bluetooth 5.0.
Regular price
£1,699.00
Unit price
Including VAT
Free next day UK delivery
Awaiting stock arrival date — order now to reserve one from the next delivery. Nothing to pay until it arrives.
THE AMP3 DIFFERENCE
Great gear. Even better service.
Order by 12 noon, Monday to Friday, for next day delivery. Destination and stock availability apply.
Not sure it’s your perfect match? Talk to an audio specialist
ONIX RA-125 Integrated Amplifier
A little extra. A better pairing.
Better together.
Hand-picked pairings for this product. Choose one — we'll add them together.
MEET THE ONIX
Classic amp, modern connections.
An integrated amp with a Sanken transistor output stage, AKM AK4493EQ DAC, XMOS USB input and Bluetooth 5.0.
Hi-fi DAC
The AK4493EQ supports up to 32-bit/768kHz and DSD256 via USB.
Quality components
Nichicon KG capacitors, MUSES8920 filters and gold-plated CMC connectors.
Read the full description
The ONIX RA-125 is a full-size integrated stereo amplifier delivering 125W per channel into 8Ω, updated with a built-in DAC for modern sources. Japanese Sanken output transistors and 420W dual toroidal transformers drive the speakers, and an AKM AK4493EQ DAC handles USB at up to 768kHz/32-bit and DSD256, plus optical and Bluetooth 5.0 inputs.
Powerful output
The output stage uses a pair of Japanese Sanken transistors, the 2SC3264 and 2SA1295, for clean, powerful output with plenty of drive, wide bandwidth and a natural, clear sound. The 420W dual toroidal transformers keep magnetic leakage low, with high stability and low phase change, which adds noticeably to the overall sound quality.
Every component matters
ONIX chose special large-capacity Nichicon KG capacitors, up to 10,000µF/63V, for the analogue circuit, and uses high-quality copper internal wiring with gold-plated CMC terminals and connectors, so nothing degrades the sound.
A modern DAC section
The digital section of the 2021 RA-125 is built around the AKM AK4493EQ, for a beautifully natural and smooth sound and full support for modern hi-res formats. When modernising the RA-125, ONIX also used newer, better parts such as MUSES8920 op-amps for the low-pass filter, for a balanced, coherent sound. Its dedicated XMOS XU208 USB input turns the RA-125 into a high-end USB DAC for a computer (PCM up to 768kHz/32-bit and DSD256), and a Qualcomm CSR8675 Bluetooth 5.0 chip streams from phones and tablets reliably and in high quality.
| Power | 125W per channel @ 8Ω |
|---|---|
| Output stage | Sanken 2SC3264 / 2SA1295 · 420W dual toroidal transformers |
| Digital inputs | USB (XMOS XU208, PCM 768kHz/32-bit, DSD256) · optical · Bluetooth 5.0 (Qualcomm CSR8675) |

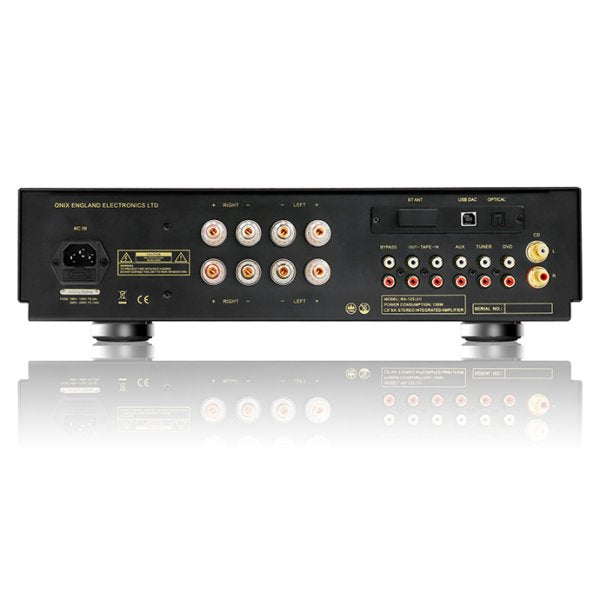

| Analogue | CD, DVD, tuner, AUX, tape in and out, bypass |
| DAC | AKM AK4493EQ · MUSES8920D low-pass filter |
| Display and power | LED display · 220V mains |
| Size and weight | 430 × 401 × 119mm · 13.8kg |
Good to know
- Partner it with the ONIX CD15A CD player for a matching system.
- At 13.8kg and 430mm wide, it needs a full-size hi-fi shelf with room to breathe.
- In the box: RA-125, remote control, power cable, USB driver disc and manual.
In the box
- ONIX RA-125 integrated amplifier
- Remote control
- Power cable
- USB driver disc
- Manual
THE FINER DETAILS
Built for
better listening.
Know what you’re choosing.
Find the right fit for your setup.
- Design
- Integrated amplifier with built-in DAC
- DAC
- AKM AK4493EQ
- Output power
- 125W @ 8Ω
- Hi-res support
- USB: PCM 768kHz/32-bit · DSD256
- Bluetooth
- 5.0 (Qualcomm CSR8675)
- Remote control
- Remote control included
- Size (H × W × D)
- 119 × 430 × 401mm
- Weight
- 13800g
- Amplification
- Sanken 2SC3264/2SA1295 output transistors · 420W toroidal transformer
- Line outputs
- Tape out · bypass
- Inputs
- USB (XMOS XU208) · optical · Bluetooth · CD, DVD, tuner, AUX, tape (analogue)
Specifications are based on manufacturer information and may change.
