Octa DAC matrix
Eight Cirrus Logic CS43198 chips achieve THD+N of -123dB with a low noise floor.
IBASSODIGITAL AUDIO PLAYERCustomer reviews (0)

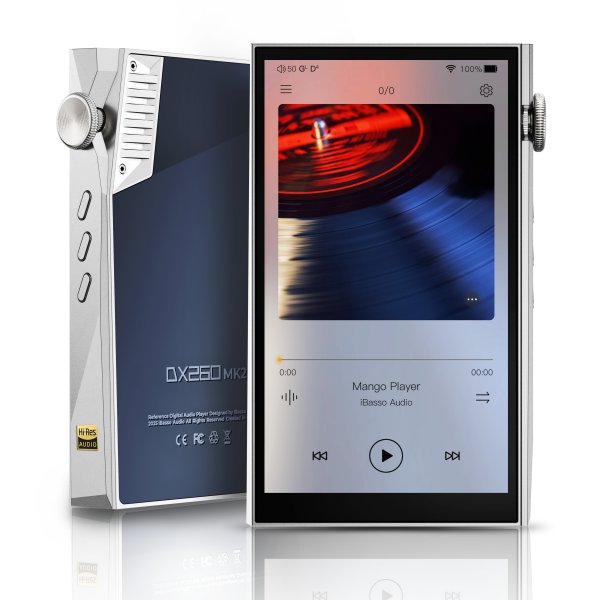

iBasso DX260 MK2 Digital Audio Player with CS43198 × 8 Octa DAC Chip Matrix
Eight DACs. Exceptional measurements.
A player with eight CS43198 DACs in a matrix, FPGA-Master 2.0, THD+N of -123dB, Android 13 and Mango OS.
Regular price
£849.00
Unit price
Including VAT
Free next day UK delivery
THE AMP3 DIFFERENCE
Great gear. Even better service.
Order by 12 noon, Monday to Friday, for next day delivery. Destination and stock availability apply.
Not sure it’s your perfect match? Talk to an audio specialist
iBasso DX260 MK2 Digital Audio Player with CS43198 × 8 Octa DAC Chip Matrix
A little extra. A better pairing.
Better together.
Hand-picked pairings for this product. Choose one — we'll add them together.
MEET THE DX260
Eight DACs. Exceptional measurements.
A player with eight CS43198 DACs in a matrix, FPGA-Master 2.0, THD+N of -123dB, Android 13 and Mango OS.
FPGA-Master 2.0
Controls the audio clocks with dual NDK femtosecond oscillators and builds the FIR filter.
Two systems
Android 13 plus Mango OS, a 5-inch screen, 4GB + 128GB and fast charging.
Read the full description
The iBasso DX260 MK2 is a digital audio player with eight Cirrus Logic CS43198 DACs working as a matrix, controlled by iBasso’s FPGA-Master 2.0. iBasso’s Audio Precision APx555 measurements show a THD+N of −123dB, 133dB signal-to-noise and 134dB dynamic range. It runs Android 13 for streaming apps and Mango OS for pure playback, and delivers up to 1,015mW into 32Ω from its 4.4mm balanced output.
Eight DACs and FPGA-Master 2.0
The FPGA-Master 2.0 takes audio data from the processor and generates every audio clock from two NDK femtosecond oscillators. It can drive the eight DACs in synchronous parallel mode, or delay groups of four DACs by single clock cycles so they act as a hardware FIR filter (2× or 4× modes), which averages out differences between the chips for lower distortion and more detail.
Two systems
Android 13 runs on a Snapdragon 665 with 4GB of RAM and 128GB of UFS storage, and bypasses Android’s sample rate conversion for any app. Mango OS is a separate Linux-based system with no Wi-Fi or Bluetooth running, for lower interference. In USB DAC mode a dedicated USB receiver gives low latency, with ASIO and WASAPI on Windows.
Battery and build
The 4,400mAh battery lasts about 14 hours and charges in about 2.5 hours. On a strong enough charger, the player runs from the charger and bypasses the battery once it is full, which keeps heat down. The back cover comes off for easy battery replacement, and guards protect the volume knob.
| DACs | 8 × Cirrus Logic CS43198 · FPGA-Master 2.0 |
|---|---|
| Outputs | 4.4mm and 3.5mm headphone · 4.4mm and 3.5mm line · 3.5mm coaxial · USB |
| 4.4mm balanced | 1,015mW @ 32Ω · 6Vrms · SNR 133dB |
| 3.5mm single-ended | 586mW @ 16Ω · 280mW @ 32Ω |
| Formats | PCM 768kHz/32-bit · native DSD512 |
| Screen | 5.0-inch Sharp 1080 × 1920 |
| Connectivity | Wi-Fi 2.4/5GHz · Bluetooth 5.0 · microSD up to 2TB |
| Size and weight | 123 × 74.5 × 17.5mm · 229g |
Good to know
- Compared with the DX260, the MK2 has a newer processor, 128GB of faster storage and Android 13; the DACs, FPGA and audio measurements are the same.
- Colours: silver frame with a blue or white glass back (the white is limited to 500 units).
- In the box: USB-C cable, coaxial cable, TPU case, screen protector, warranty card and quick start guide.
- For iBasso’s flagship, see the DX340 Titanium Edition.
In the box
- DX260MK2 DAP
- USB-C cable
- Coaxial cable
- Protective TPU case
- Screen protector
- Warranty card
- Quick start guide
Downloads
THE FINER DETAILS
Built for
better listening.
Know what you’re choosing.
Find the right fit for your setup.
- DAC
- 8 × Cirrus Logic CS43198
- Operating system
- Android 13 + Mango OS (Snapdragon 665)
- Headphone outputs
- 3.5mm single-ended · 4.4mm balanced
- Output power
- 1,015mW @ 32Ω balanced · 586mW @ 16Ω, 280mW @ 32Ω single-ended
- Hi-res support
- PCM 768kHz/32-bit · DSD512 native
- Battery
- 4,400mAh · up to 14 hours (low gain)
- Storage
- 128GB · 4GB RAM · microSD up to 2TB
- Screen
- 5.0" IPS 1080 × 1920
- Bluetooth
- 5.0
- Wi-Fi & streaming
- 2.4/5GHz
- Size (H × W × D)
- 123 × 74.5 × 17.5mm
- Weight
- 229g
- Line outputs
- 3.5mm & 4.4mm (switchable)
- Digital outputs
- Coaxial (mini) · USB audio
- Finishes
- BLUE / WHITE
Specifications are based on manufacturer information and may change. Battery life varies with use and settings.
