AKM sound
The AK4493SEQ brings Shanling's natural, warm and smooth tuning.
SHANLINGDONGLE DACCustomer reviews (0)
Shanling UA3 Portable DAC/Amp
Warm AKM sound, pocket-sized.
A compact dongle with an AKM AK4493SEQ DAC, dual Ricore amps, 3.5mm and 4.4mm outputs, hardware buttons and up to 211mW.
Regular price
£129.00
Unit price
Including VAT
Free next day UK delivery
Awaiting stock arrival date — order now to reserve one from the next delivery. Nothing to pay until it arrives.
THE AMP3 DIFFERENCE
Great gear. Even better service.
Order by 12 noon, Monday to Friday, for next day delivery. Destination and stock availability apply.
Not sure it’s your perfect match? Talk to an audio specialist
Shanling UA3 Portable DAC/Amp
A little extra. A better pairing.
Better together.
Hand-picked pairings for this product. Choose one — we'll add them together.
MEET THE UA3
Warm AKM sound, pocket-sized.
A compact dongle with an AKM AK4493SEQ DAC, dual Ricore amps, 3.5mm and 4.4mm outputs, hardware buttons and up to 211mW.
Balanced power
Two Ricore amplifiers deliver up to 211mW at 32Ω.
Hands-on control
Physical volume and playback buttons, with UAC1.0 for games consoles.
Read the full description

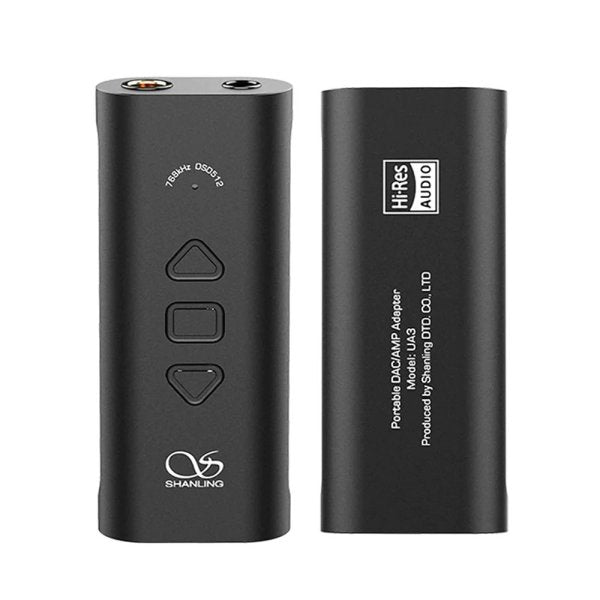

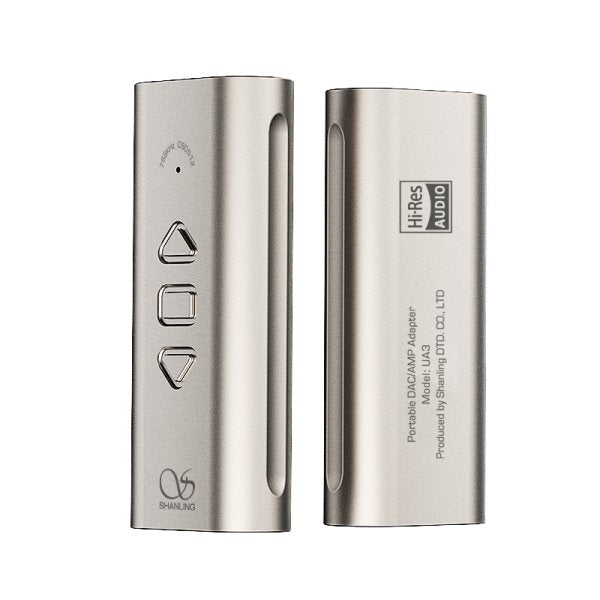

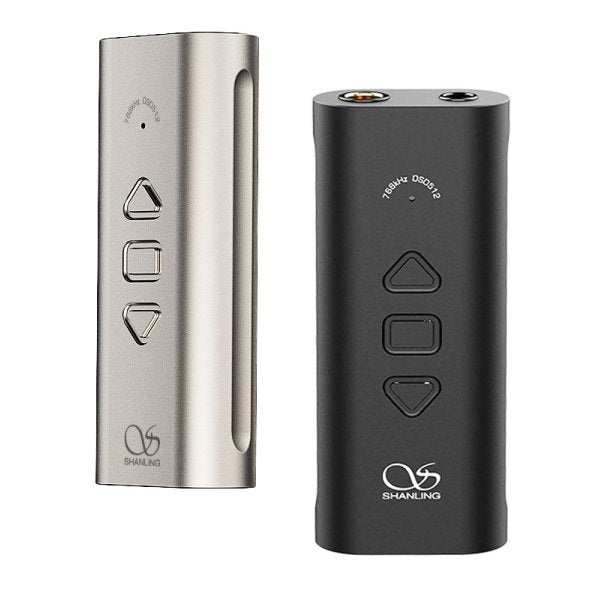

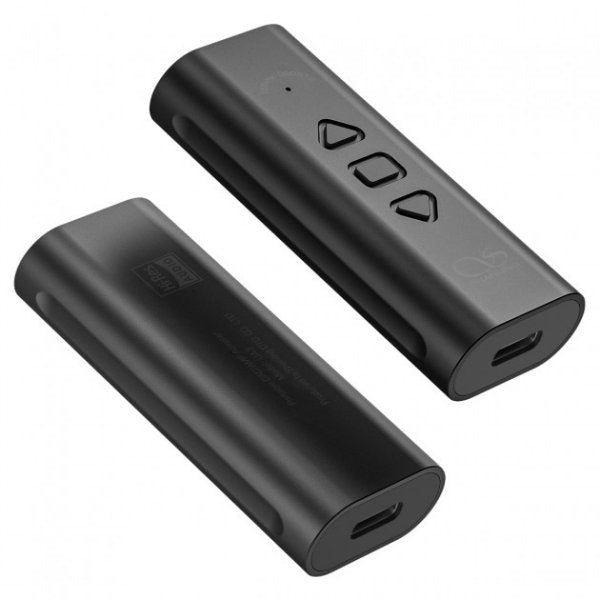

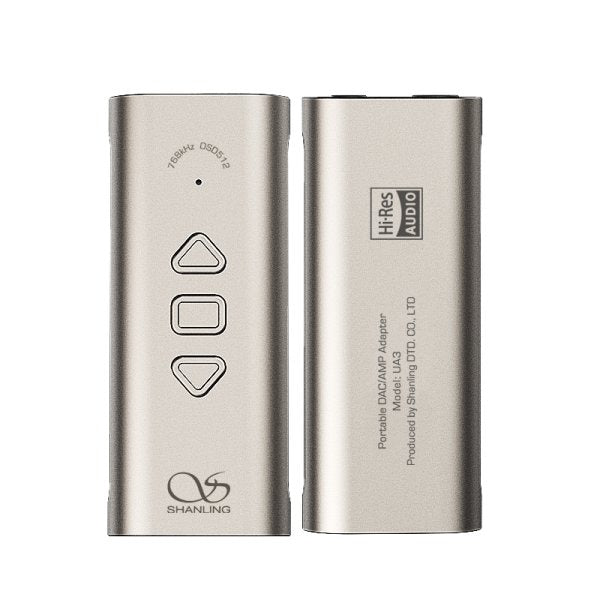

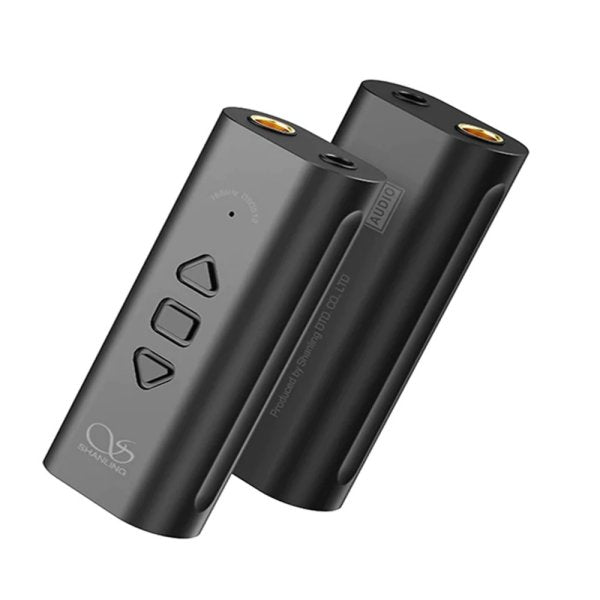

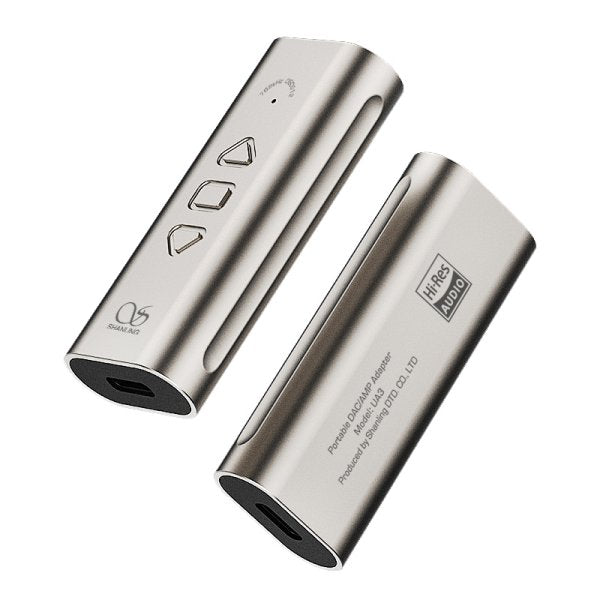

The Shanling UA3 is a compact portable USB DAC and headphone amp that brings AKM sound to Shanling’s UA range. A new AK4493SEQ DAC and two Ricore RT6863 amplifiers give up to 211mW into 32Ω from the 4.4mm balanced output and 125mW from the 3.5mm, with hardware buttons, a sample-rate light and a high-precision, low-jitter clock, in a 20.5g aluminium body.
Small black beauty
The UA3 is precisely machined from a single block of aluminium with a smooth matte finish, for simple, durable construction. At just 20.5g it is a perfect travel companion.
AKM sound and dedicated amplifiers
The AK4493SEQ finally brings AKM sound to the UA line: Shanling’s house sound at its fullest, natural, warm and smooth, with PCM up to 768kHz/32-bit and DSD512. Two Ricore RT6863 amplifiers form a powerful balanced output for clean, dynamic sound and proper drive for a wide range of headphones.
Easy on your phone’s battery
Shanling’s latest USB DAC power management means the UA3 draws far less power from your phone: 60% less in standby and 40% less during playback, according to Shanling’s tests, for better compatibility and longer phone battery life.
Clean and precise
A built-in high-precision clock processes data accurately for better PCM and DSD performance, and an advanced low-dropout regulator gives an extremely black background with no unwanted noise.
Interchangeable cable
A premium copper USB-C to USB-C cable is included, and the standard USB-C socket lets you use any cable to suit your Android phone, computer or iPhone. iPhones with Lightning need a Lightning to USB-C cable (sold separately); Windows needs Shanling’s USB driver, macOS needs none.
Gaming, app and controls
- Gaming: hold the middle button while connecting to switch to UAC 1.0 mode for wider compatibility, including games consoles such as the Nintendo Switch.
- Eddict Player app (Android): six digital filters, gain, button settings and more. Not available on iOS.
- Buttons: control either the UA3’s own hardware volume or your device’s software volume, plus play and pause; hold for 2 seconds to switch between them.
- Sample-rate light: blue 44.1/48kHz, green 88.2/96kHz, yellow 176.4/192kHz, purple 352.8–768kHz, white DSD64–DSD512, red UAC 1.0 mode.
| DAC and amps | AKM AK4493SEQ · 2 × Ricore RT6863 · PCM 768kHz/32-bit · DSD512 · 6 digital filters |
|---|---|
| 4.4mm balanced | 2.6V (210mW) @ 32Ω · 20Hz–40kHz (−0.7dB) · THD+N 0.0003% · SNR and DR 120dB · separation 110dB · under 0.8Ω |
| 3.5mm | 2V (125mW) @ 32Ω · THD+N 0.0004% · SNR and DR 119dB · separation 80dB · under 0.4Ω |
| Size and weight | 60 × 25 × 13mm · 20.5g · black or titanium |
Good to know
- In the box: UA3, copper USB-C to USB-C cable, USB-C to USB-A adaptor, quick start guide and warranty card.
In the box
- Shanling UA3
- USB-C to USB-C cable (copper)
- USB-C to USB-A adaptor
- Quick start guide and warranty card
Downloads
THE FINER DETAILS
Built for
better listening.
Know what you’re choosing.
Find the right fit for your setup.
- DAC
- AKM AK4493SEQ
- Headphone outputs
- 3.5mm single-ended · 4.4mm balanced
- Output power
- 211mW @ 32Ω balanced · 125mW @ 32Ω single-ended
- Frequency response
- 20Hz–40kHz (−0.7dB)
- Hi-res support
- PCM 768kHz/32-bit · DSD512
- EQ & app control
- Eddict Player app (Android): filters, gain, settings
- Signal-to-noise ratio
- 120dB (4.4mm) · 119dB (3.5mm)
- Distortion (THD+N)
- 0.0003% (4.4mm) · 0.0004% (3.5mm)
- Output impedance
- <0.8Ω (4.4mm) · <0.4Ω (3.5mm)
- Crosstalk
- 110dB (4.4mm) · 80dB (3.5mm)
- Size (H × W × D)
- 60 × 25 × 13mm
- Weight
- 20.5g
- Amplification
- 2 × Ricore RT6863
- Inputs
- USB-C
- Finishes
- BLACK / TITANIUM
Specifications are based on manufacturer information and may change.
