Drives almost anything
Up to 1015mW at 32Ω with two gain levels for planars or sensitive IEMs.
SHANLINGDESKTOP DAC & HEADPHONE AMPLIFIERCustomer reviews (0)
Shanling EH1 Compact Desktop DAC and Headphone Amp
Compact desktop power, curved design.
A compact desktop DAC/amp with a CS43198 DAC, up to 1015mW, 6.35mm and 4.4mm outputs, tone controls and a line/pre-out.
Regular price
£199.00
Unit price
Including VAT
Free next day UK delivery
Also available open-box Full warranty
Condition and contents are explained on each listing.
THE AMP3 DIFFERENCE
Great gear. Even better service.
Order by 12 noon, Monday to Friday, for next day delivery. Destination and stock availability apply.
Not sure it’s your perfect match? Talk to an audio specialist
Shanling EH1 Compact Desktop DAC and Headphone Amp
A little extra. A better pairing.
Better together.
Hand-picked pairings for this product. Choose one — we'll add them together.

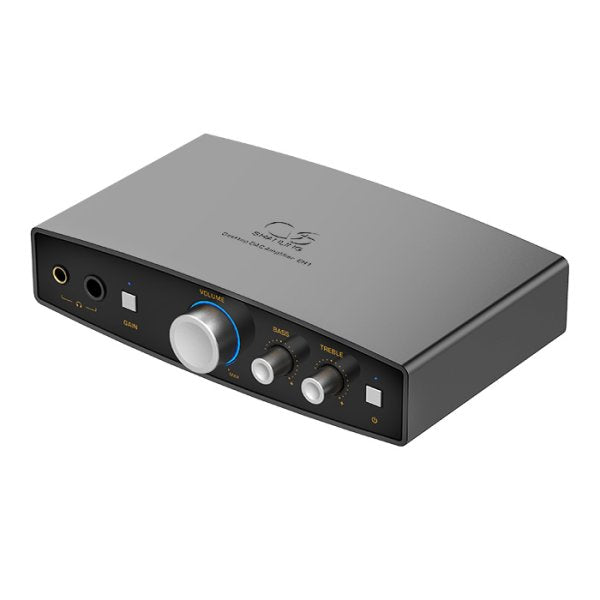

MEET THE EH1
Compact desktop power, curved design.
A compact desktop DAC/amp with a CS43198 DAC, up to 1015mW, 6.35mm and 4.4mm outputs, tone controls and a line/pre-out.
Tone control
Adjust treble by ±10dB and bass by ±6dB.

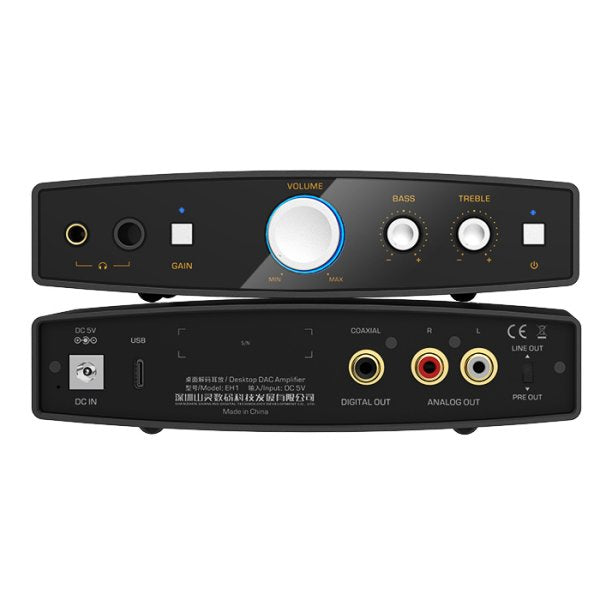

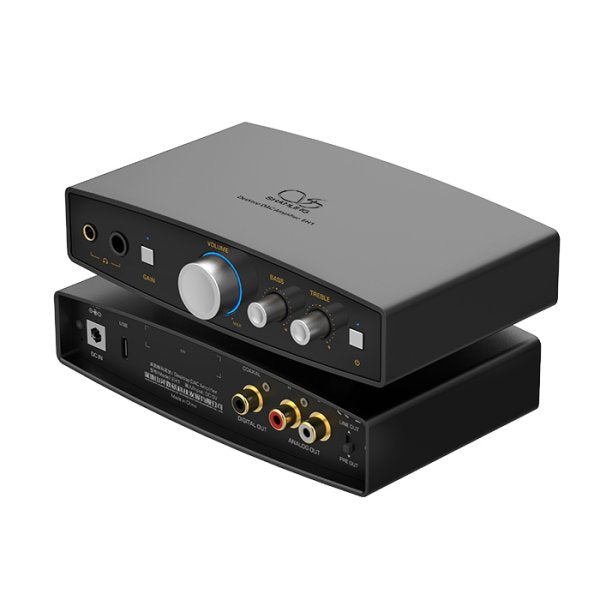

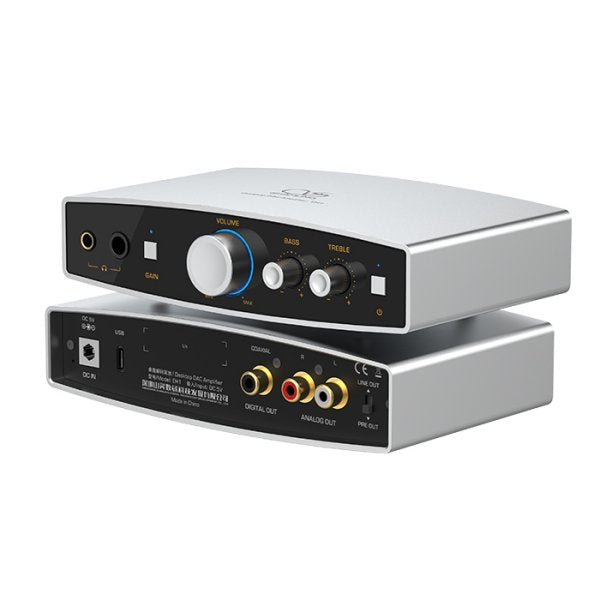

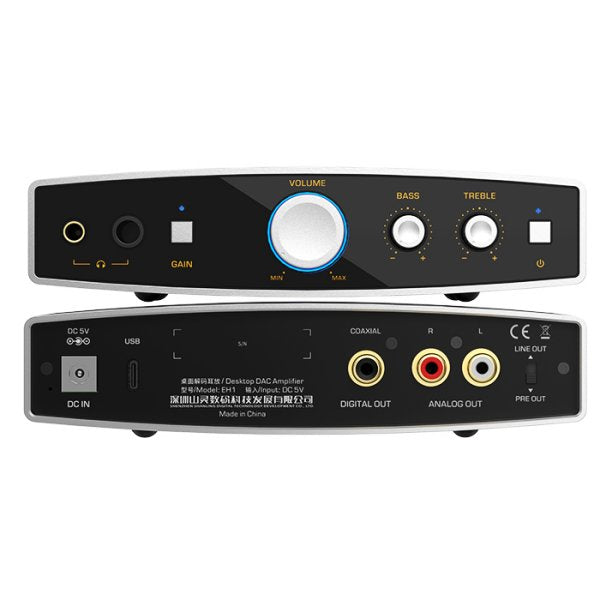

Versatile outputs
RCA line/pre-out and a coaxial digital output, powered by USB-C or 5V DC.
Read the full description
The Shanling EH1 is a compact desktop DAC and headphone amplifier for anyone moving up from a dongle or a laptop’s headphone socket. A Cirrus Logic CS43198 DAC and two SGM8262 amplifiers deliver up to 1,015mW from the 4.4mm balanced output, and it adds 6.35mm, RCA line/pre-out and coaxial outputs, plus real treble and bass controls, in a curved aluminium case just 156mm wide.
Clean conversion, plenty of power
Shanling chose the CS43198 for its very clean measurements and tuned the circuit with Sanyou, Panasonic and Silmic II capacitors. It plays PCM up to 32-bit/768kHz and native DSD512, with a 122dB signal-to-noise ratio at the line output. Two gain levels, low output impedance and a precise volume wheel suit everything from sensitive in-ear monitors to full-size planar headphones.
| 4.4mm balanced | 980mW @ 32Ω on USB power · 1,015mW @ 32Ω with DC power (high gain) |
|---|---|
| 6.35mm single-ended | 250mW @ 32Ω on USB power · 399mW @ 32Ω with DC power (high gain) |
| RCA | 2.38V line-out, or variable pre-out for power amps and active speakers |
| Coaxial | Digital S/PDIF output, so the EH1 can also act as a USB-to-coaxial converter |
| Input and power | USB-C from a computer, phone or tablet · separate 5V DC input for cleaner power |
Tone controls and handy touches
A built-in analogue tone circuit adjusts treble by up to ±10dB and bass by ±6dB, a quick way to match the sound to your headphones or taste. A coloured light ring around the volume wheel shows the sample rate being played (white for DSD), and a UAC 1.0 mode makes the EH1 work with games consoles and older devices. It is certified for Hi-Res Audio and comes in silver or black.
Good to know
- For full power, power the EH1 through its DC input with the supplied USB-A to DC cable and a 5V USB charger.
- There is no Bluetooth: the EH1 connects by USB.
- In the box: USB-A to USB-C cable, USB-A to DC cable, 3.5mm to 6.35mm adapter and manual.
- Size and weight: 156 × 90 × 36.5mm, 392.5g.
In the box
- Shanling EH1 Compact Desktop DAC and Headphone Amp
- USB-A to USB-C cable
- USB-A to DC cable
- 3.5mm to 6.35mm jack
- User manual
THE FINER DETAILS
Built for
better listening.
Know what you’re choosing.
Find the right fit for your setup.
- DAC
- Cirrus Logic CS43198
- Headphone outputs
- 6.35mm single-ended · 4.4mm balanced
- Output power
- 1,015mW @ 32Ω (4.4mm) · 399mW @ 32Ω (6.35mm), high gain with DC power; 980mW / 250mW on USB power
- Frequency response
- 20Hz–40kHz
- Hi-res support
- PCM 768kHz/32-bit · DSD512
- Gain modes
- Low / high
- EQ & app control
- Analogue treble (±10dB) and bass (±6dB) controls
- Signal-to-noise ratio
- 122dB (RCA) · 119dB (headphone)
- Distortion (THD+N)
- 0.0007% (RCA)
- Output impedance
- 0.4Ω (6.35mm) · 0.8Ω (4.4mm)
- Size (H × W × D)
- 36.5 × 156 × 90mm
- Weight
- 392.5g
- Amplification
- 2 × SGM8262
- Line outputs
- RCA (2.38V), line-out or pre-out
- Digital outputs
- S/PDIF coaxial
- Inputs
- USB-C (UAC 2.0 or UAC 1.0 mode)
- Power
- USB-C or 5V DC

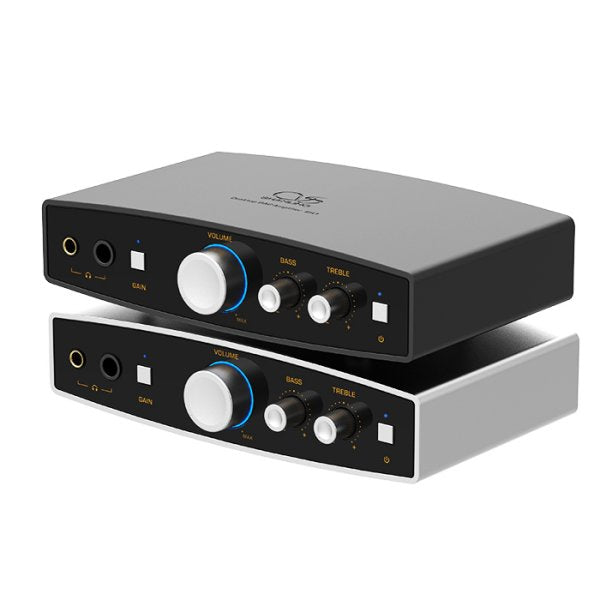

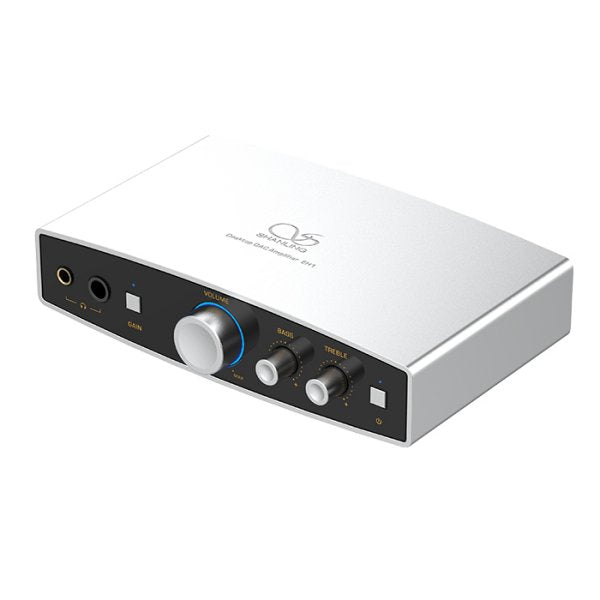

- Finishes
- BLACK / SILVER
Specifications are based on manufacturer information and may change.
