Dual CS43198 DACs
PCM 384kHz/32-bit and DSD256, with 0.0008% THD and 122dB SNR.
IKKODONGLE DACCustomer reviews (0)
IKKO ITM05 Music Patch Portable DAC/AMP
Balanced sound for your phone.
An ultra-portable, battery-free DAC/amp with dual CS43198 DACs, PCM 384kHz and DSD256, and 3.5mm and 2.5mm balanced outputs.
Regular price
£229.99
Unit price
Including VAT
Free next day UK delivery
THE AMP3 DIFFERENCE
Great gear. Even better service.
Order by 12 noon, Monday to Friday, for next day delivery. Destination and stock availability apply.
Not sure it’s your perfect match? Talk to an audio specialist
IKKO ITM05 Music Patch Portable DAC/AMP
A little extra. A better pairing.
Better together.
Hand-picked pairings for this product. Choose one — we'll add them together.
MEET THE IKKO
Balanced sound for your phone.
An ultra-portable, battery-free DAC/amp with dual CS43198 DACs, PCM 384kHz and DSD256, and 3.5mm and 2.5mm balanced outputs.
Two outputs
A 3.5mm jack plus a 2.5mm balanced output (use one at a time).
Lives on your phone
Battery-free, 23g and MagSafe-thin, in USB-C or Lightning versions.
Read the full description
The IKKO ITM05 “Music Patch” is a thin, square DAC and headphone amplifier that sits on the back of your phone. IKKO set out to give phones, whose built-in DACs are often limited, real hi-fi sound at an affordable price, and says the ITM05 pioneered the use of two Cirrus Logic CS43198 DACs in a portable amp, for PCM up to 384kHz/32-bit and DSD256 with just 0.0008% distortion and a 122dB signal-to-noise ratio, from a 3.5mm output and a 2.5mm balanced output. It needs no battery, weighs 23g, and comes in USB-C and Lightning versions.
Made to live on your phone

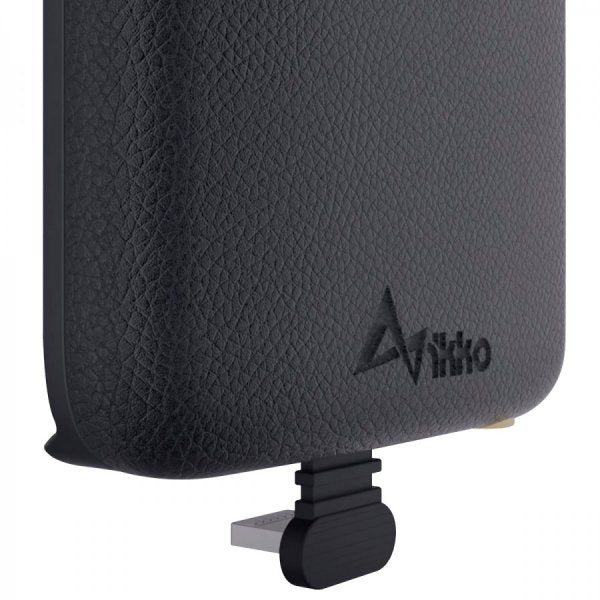

The ITM05 is only as thick as an iPhone MagSafe accessory. Its connector has an integrated telescopic design, and an arc-shaped groove underneath helps it sit close against the back of the phone, which keeps the plug from working loose. It works even with a phone case on, and IKKO designed it so you can keep listening while your phone charges. The body is high-quality plastic with a soft PU-leather back and curved edges that make it thinner at the sides, for a soft, comfortable feel; adhesive pads hold it in place.

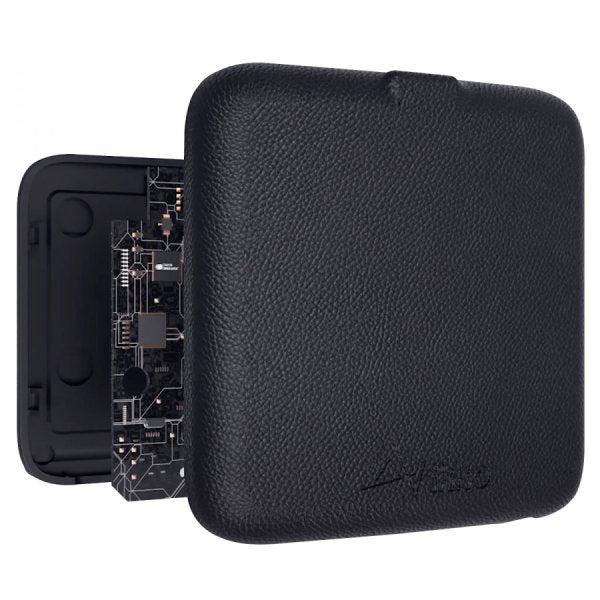

Dual CS43198 DACs
Two CS43198 DACs handle the decoding, an approach IKKO says has clear advantages over ordinary headphone adapters and Bluetooth, with a battery-free, ultra-low-power design that draws its power from the phone or computer. It adapts to headphones from 16Ω to 600Ω and has a delicate, natural tuning.

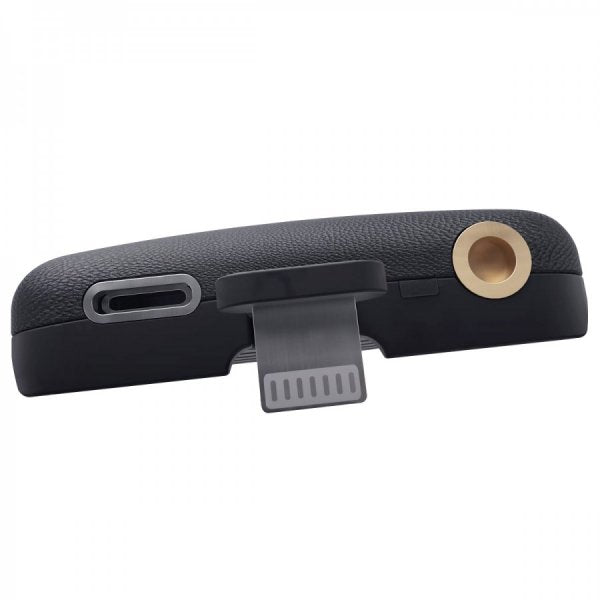

Two outputs
Unlike most dongle DACs, the ITM05 has two headphone sockets: a 3.5mm output at 2.1V and a professional 2.5mm balanced output at 2.0V. Use one at a time: IKKO asks you not to connect headphones to both at once.
Plug and play
It connects in a second, with no drivers to install, and works with Android, iOS and computers.
| DAC | 2 × Cirrus Logic CS43198 |
|---|---|
| Outputs | 3.5mm (2.1V) · 2.5mm balanced (2.0V) |
| Performance | THD 0.0008% · SNR 122dB · headphones 16–600Ω |
| Formats | PCM up to 384kHz/32-bit · DSD256 |
| Connection | USB-C or Lightning (choose your version) · Android, iOS, Windows and macOS |
| Size and weight | 50 × 50 × 12mm · 23g · powered by the source, no battery |
Good to know
- The balanced output is 2.5mm; for 4.4mm headphones you need an adapter.
- Do not plug headphones into both outputs at the same time.
- In the box: protective case, cleaning cloth and spare adhesive strips.
In the box
- IKKO ITM05
- Protective case
- Cleaning cloth
- Additional adhesive strips
THE FINER DETAILS
Built for
better listening.
Know what you’re choosing.
Find the right fit for your setup.
- DAC
- 2 × Cirrus Logic CS43198
- Headphone outputs
- 3.5mm single-ended · 2.5mm balanced
- Output power
- 2.0V balanced · 2.1V single-ended output level
- Hi-res support
- PCM 384kHz/32-bit · DSD256
- Compatibility
- Android, iOS and computers · headphones of 16–600Ω
- Signal-to-noise ratio
- 122dB
- Distortion (THD+N)
- 0.0008%
- Size (H × W × D)
- 50 × 50 × 12mm
- Weight
- 23g
- Inputs
- USB-C or Lightning (choose version)
- Power
- Powered by the source device (no battery)
Specifications are based on manufacturer information and may change.
