FiiO M5 Portable High-Resolution Music Player

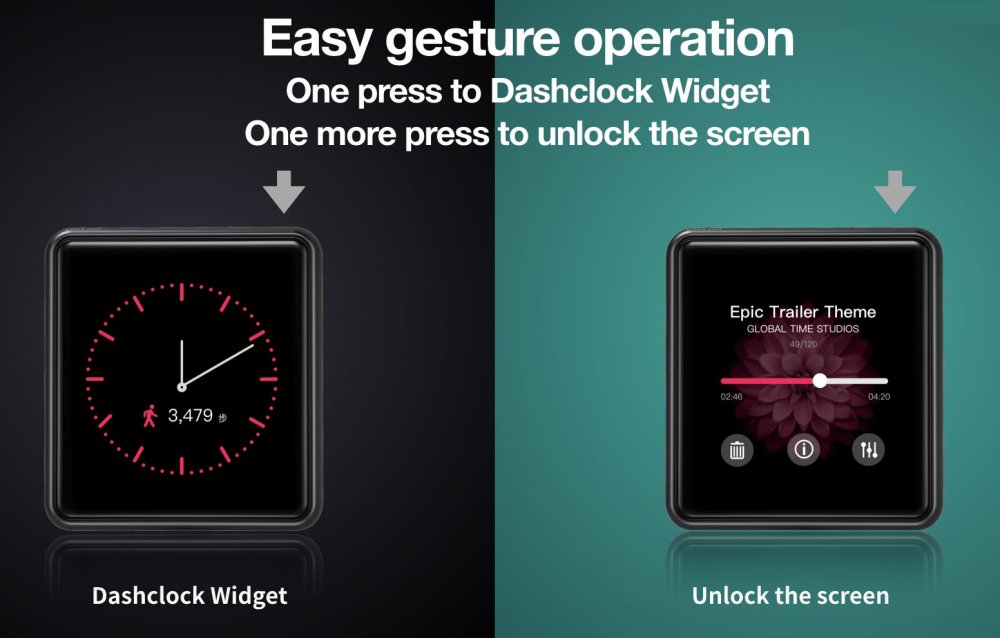

The FiiO M5 is the smallest member of the M series and sports a 1.54-inch sized retina-like IPS display with a resolution of 240x240 pixels that produces bold and bright colours and supports gestures that are ideal for interacting with a tiny screen. It comes with features such as 2-way Bluetooth transmission, voice recording, step counting and USB DAC and more.
The FiiO M5 can be seen as a combination of a compact DAP and a Bluetooth receiver such as the BTR3.

Every detail is dedicated to sound quality
Ingenic X1000E processor
Unlike other players in the same price range, the M5 is equipped with the Ingenic X1000E processor. With its low power consumption yet high performance, the M5 is capable of doing more for longer periods of time without recharging.
High-performance dedicated DAC
The M5 utilizes the high-performance AKM AK4377 DAC, with support for native DSD. With excellent decoding of both PCM and DSD formats, and with low distortion and noise, you can be sure you will get excellent sound with the M5.
Premium Bluetooth solution
With Qualcomm’s flagship Bluetooth chip, the CRS8675, you can truly enjoy the superb sound through lossless Bluetooth.
The M5 supports both Bluetooth transmitting and receiving, to powerfully be able to connect to more Bluetooth devices.
Bluetooth receiver formats: SBC/AAC/aptX/aptx HD/LDAC
Bluetooth transmitter formats: SBC/LDAC
Dedicated multi-channel power management
The AXP192, the dedicated multi-channel power management chip, is used in the M5 to ensure maximum sound quality.
A variety of ways to play your music
USB Audio: Supports up to 384kHz-32bit/DSD128 output and supports DoP/D2P output.
USB DAC: asynchronous USB DAC supporting up to 384kHz-32bit and DSD128. (For use with Windows computers, you need to install a simple FiiO Driver).
Audio outputs: supports headphone out, line out and coaxial out.
The M5 supports most audio formats, including MP3/OGG/ACC/AIFF/WMA/APE/FLAC/ALAC/WAV/DSD/ISO. PCM is supported up to 384kHz/32bit, native DSD is supported and even CUE files.
Clearer calls with cVc technology
The M5 employs a dual microphone design, which in conjunction with cVc noise cancellation technology gives clear and noise free Bluetooth calls.
Both USB decoding and output through USB Type-C
The USB 2.0 Type-C connector supports a wide variety of functions, including storage/charging/ USB DAC/ USB Audio output.
Transfer files over whenever, no computer necessary
The M5 supports connecting to a USB OTG-compatible smartphone and tablet. After connecting via USB OTG cable, you can transfer files to the M5 with speeds about the same as with a computer, but in a far easier and more convenient way.
Choose your own sound
With 7 equalizer options to choose from – rock, classic, jazz, pop, dance, vocal and metal – you can get your music to sound exactly the way you want.
A small device packing a big punch
The M5 supports microSD cards up to 2TB, allowing you to carry your whole library wherever you go
It has a built-in 550mAh rechargeable lithium-ion battery, for longer playtime and standby time.
Headphone out battery life > 10.5 hours
Bluetooth battery life > 13.5 hours
Deep sleep standby > 22 days
In addition to being a player, the M5 can also act as a high-fidelity sound recorder, helping you to keep a recording of things in your life.
And as the M5 is beautiful from every angle you can set the display orientation however you like it; 0, 90, 180 or 270 degrees.
Step counter included
Built into the M5 is a high-precision pedometer chip, allowing it to display both numbers of steps taken and calories burned, so you can really see the result of your workout as you enjoy your music.



Features
- CNC-machined aluminium alloy body
- Double-sided 2.5D in-cell tempered glass
- 1.54-inch IPS touch screen
- Ingenic X1000E processor
- high-performance AKM AK4377 DAC
- Qualcomm’s flagship CSR8675 Bluetooth chip (version 4.2)
- 64MB RAM and supports micro SD cards up to 2TB
- Two-way Type-C USB with USB DAC function and USB-OTG support
- 3.5mm headphone and line out
- Dual microphones
- High fidelity sound recorder
- Charging time 2.5 hours, standby time 22days
- Playback time 10.5 hours using headphone out and 13.5 hours using Bluetooth
- Dimensions: 45.3 x 42 x 13.7 mm | Weight about 38 g
