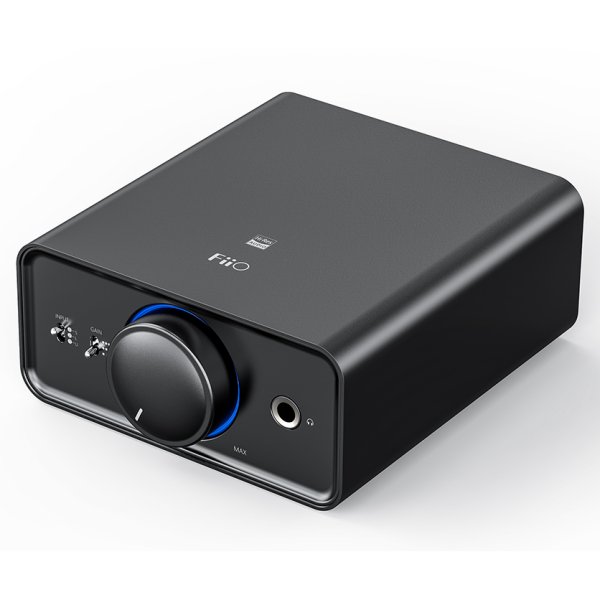

Fiio K5 PRO Desktop Headphone Amplifier & DAC
FiiO’s K5 Pro acts as a bridge, allowing your computer, speakers, and headphones to work together to truly experience eerily realistic details.
The classic lives on with a stronger decoding
In the K5 Pro clock management is improved, and overall decoding performance is excellent. This is due to the XMOS XUF208 decoding chip with an all-new clock matching management system, with unprecedent capabilities that supports decoding up to a sample rate of 768kHz and hardware native DSD decoding.
Coaxial and digital input
No matter what audio equipment you use, digital audio inherently has advantages in integrity and fidelity of signals transmitted. The K5 Pro allows you to take advantage of digital audio with optical and coaxial inputs supporting up to 192kHz inputs, convenient for connecting various music players and digital interfaces.
Next generation DAC
The K5 Pro archives new heights in sound quality thanks to the high-performance AKM AK4493 DAC with 32-bit processing and VELVET SOUND technology, along with the XMOS USB decoding chip with 768kHz and DSD inputs. With the left and right audio channels being independently handled and fully differential audio output, the K5Pro has such a high level of resolution you will be hearing details you never noticed before.
Specially designed audio architecture
When it comes to amplification, the K5 Pro is no slouch. The K5 Pro has generous space to fit and package the necessary components for exceptional analogue amplification and packs a four-level audio circuit capable of providing extraordinary audio fidelity in its class: second order LPF + analogue volume adjustment + voltage amplification + current drive. Each part of the amplification circuit works perfectly together in harmony for excellent dynamic range and higher resolution of sound.
Utterly precise volume control
The NJRC NW1195A analogue volume adjustment chip features an ultra-low output noise of -118dB and is able to adjust volume by 0.5dB per step. And when this is paired with the combination of the flagship TI TPA6120 op-amp and the OPA1642 JFET op-amp, the K5 Pro provides wonderfully smooth, yet high resolution sound.
Safe, secure and robust external power supply
The K5 Pro uses a DC 15 power supply designed to specifically minimize noise. The incoming DC power is filtered with secondary power supply, which then independently supplies power to the amplification part of the audio circuit and the rest of the circuit. This effectively suppresses power supply ripple and minimizes power supply crosstalk between the two major sections of the circuit, for a more stable and less noisy power that is critical for outstanding sound for such a precisely designed high performance audio architecture.
Musical perfection with ADC volume adjustment
Through reconstruction of the ADC curve, the K5 Pro’s volume control allows you to smoothly adjust volume at extremely fine increments without any undesirable noise nor with any channel imbalances. With the K5 Pro, you can comfortably use various headphones with all kinds of sensitivities.

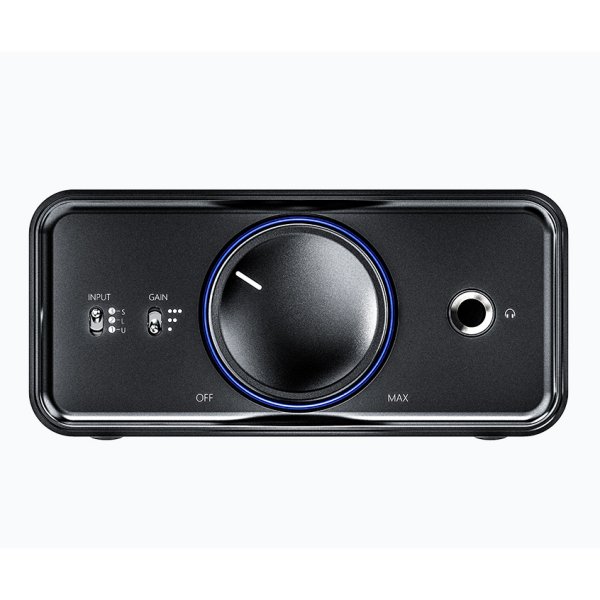

Gain control with toggle switches for precise sound
Both the input selection and gain are controlled by tactile toggle switches, which are clearly labelled allowing you to easily control your music. Low, medium and high gain-levels are available allowing you to use the K5 Pro with almost any headphones at comfortable volume levels. A purely hardware gain circuit is used at low gain, with unaffected and uncompromised dynamic range and over all music fidelity.
Finely textured all-aluminium body
The all-aluminium body is repeatedly polished with CNC and is then carefully finished with anodizing and fine sandblasting, for a smooth yet finely textured shell. The K5 Pro is a compact, robust unit that doesn’t take up much space, perfect for your desk.
Extremely powerful headphone amplification
The carefully tuned feedforward amplifier circuit design increases the power output of up to 1.5 W under a 32Ω load, and up to 20Vpp at 300Ω. The K5 Pro easily handles any low or high impedance headphones.
RCA line-out for high quality output to other sources
Besides the wide variety of digital inputs, the K5 Pro also features a traditional analogue RCA line-in. RCA line-in is not only more robust and less prone to breakage then 3.5mm line-in, it also has better resolution. The RCA line-out line signal is adjustable up to a maximum of 2Vrms, so the K5 Pro can be used with a variety of active speakers and external amplifiers. *When using the line out, please disconnect any headphones.
- High-performance DAC AK4493
- USB decoding chip: XMOS XUF208
- USB DAC: 768K / 32Bit and native DSD decoding

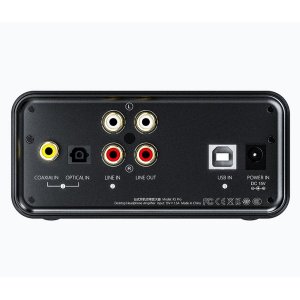

- Variety of inputs: Coaxial / Optical / RCA line-in
- Variety of outputs: 6.35mm (1/4 in.) headphone out / RCA line-out
- Tactile toggle switch for low, medium and high Gain control
- Extremely powerful headphone amplification (up to 1.5 W under a 32Ω load, and up to 20Vpp at 300Ω)
